Dynex
Dynex manufacture reliable and high performing IGBTs and FRDs that are currently in service in over 60 different countries. Featuring a robust range of high voltage IGBT modules to suit traction drives, motor controllers and high reliability inverters.
The Dynex manufacturing plant is a vertically integrated facility with device design, wafer fabrication, packaging, qualification and testing available on site.
Dynex Semiconductors has a rich history in the design, development and production of high power semiconductors and power assemblies. Throughout the years, their products have been used in various projects varying from traction, power quality through HVDC, renewable energy production, to helping science advance.
Dynex offer a wide range of robust high voltage IGBT modules to suit a wide range of applications such as traction drives, motor controllers and high reliability inverters. Dynex’s FRD modules regulate electricity flow to ensure higher reliability and increased efficiency in motor drives and other variable speed processes. Dynex’s family of high-voltage fast recovery diode modules are designed to match and work with their IGBT modules.
Dynex Semiconductors
Challenging energy efficiency standards in power electronic systems and making a positive difference to customers
Dynex is one of the world’s leading manufacturers of high power semiconductor components, they provide support for customers requiring more than just basic semiconductors by utilising the skills of their power electronics, mechanical and electronic engineers. Dynex offer a wide range of robust and highly reliable high power IGBT modules and bipolar products that service over 60 different countries around the world.
Dynex has a rich history in the design, development and production of high power semiconductors and offer a robust range of high power IGBTs and FRD Modules designed to suit a wide range of applications. Throughout the years, Dynex’s semiconductors have been applied to traction, power quality renewable energy and science projects. Their semiconductor operations is located in Lincoln (UK) specialising and bringing customers the latest technology in semiconductors, power assemblies and electric vehicle vehicle systems, and the company has recently celebrated their 60th anniversary.
FRD Modules
Dynex’s FRD modules regulate electricity flow to ensure higher reliability and increased efficiency in motor drives and other variable speed processes. Dynex’s new fast recovery diode module range includes single and dual diodes rated at both 1.8kV and 3.3kV.
The 1.8kV variants include single diodes in an L footprint package (106 x 62mm) with ratings of 300A and 600A, and dual diodes in an F footprint package (130 x 140mm) with ratings of 600A, 900A and 1200A per diode. The 3.3kV variants include single diodes on the L footprint (62 x 106mm) and P footprint (140 x 73mm), both with ratings of 400A, or dual diodes on an N footprint (130 x 140mm) with ratings of 400A, 800A and 1200A per diode.
High Voltage IGBT Modules

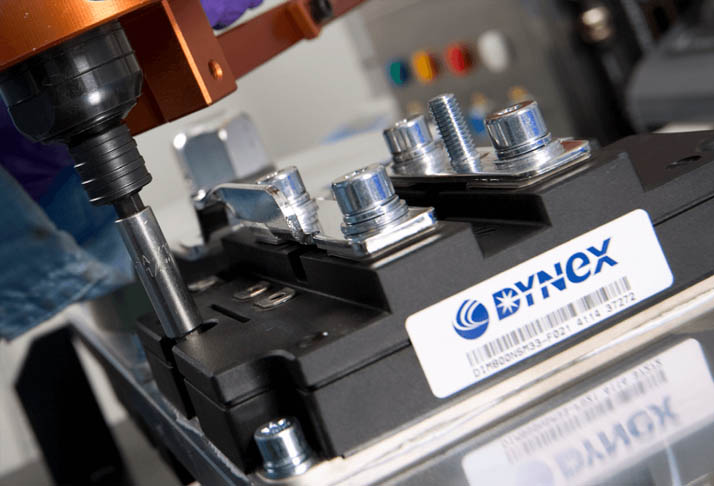

Dynex utilise superior power cycling with the latest IGBT generation die with minimised switching losses. The low inductance power busbar design enables the module to cope with fast switching transients such as those generated by next generation trench gate lGBTs and silicon MOSFETs.
The Dynex manufacturing plant offers device design, wafer fab, packaging, qualification and a testing service available on site.
Technical Resources
We know offering customers direct access to the products, manufacturers and technical support they need is instrumental to their success. That’s why we share with you the latest technical resources and application engineering support directly from our manufacturers.
Datasheets
Find in-depth technical product information by downloading Dynex's datasheets. All of our datasheets can be found on individual product pages.
Download
Technical Articles
Discover Dynex's technical articles featuring product specific and application information for customers.
View All
Catalogue
Read Dynex's product guide and learn more about their products, package outlines and suitable applications.
Download
Line Card
Whether you’re on the move or working from home, you can download our line card to browse our product range quickly.
Download
Applications
We offer a comprehensive range of solutions for a wide range of applications, providing a strong focus on productivity, product quality and worker safety.
Renewable Energy
Industrial
Rail
