Industrial Fuses

Eaton’s Bussmann® series Red Spot British standard industrial fuse holders address many applications needs. They are fully shrouded for enhanced safety, feature high resistance body material to maintain high dielectric strength and provide a reliable contact system ensuring superior electrical conductivity.

Industrial red spot fuses by GD Rectifiers

Please note we are still adding products to our new website. Can't see the product you need? Contact us on 01444 243 452 / [email protected]

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Industrial Fuses

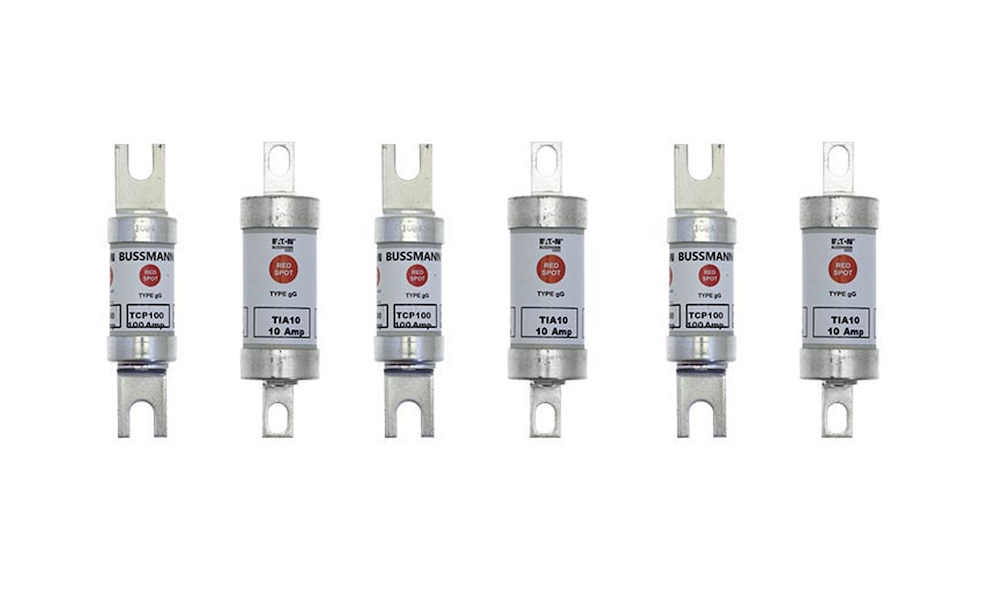

Bussmann offers a wide range of industrial (also known as red spot) fuses specifically designed for the protection of general industrial applications, including: power distribution, cable protection and motor protection.

Bussmann’s red spot industrial fuses set the standard for protecting utility and industrial installations for over 40 years.

Industrial fuses by GD Rectifiers

Technical Data

Rated voltage :

– Size A1: 550Vac/250Vdc

– Size A2 to A4: 660-690Vac/up to 460Vdc

Rated current: 2A-200A

Breaking capacity: 80kA up to 690Vac

View the full Bussmann Low Voltage Fuse Catalogue here.



NIT, Class gG, 550Vac and 250Vdc, 2A-20A

Catalogue Number   Rated Voltage    Rated Current (Amps)    Breaking Capacity     Operating Class    BS Reference  Fixing Centre (mm)  Pack Quantity   Compatible Fuse Holders
NIT2 550Vac/250Vdc 2 80kA at 550Vac gG A1 44 20 CM32FC
NIT4 550Vac/250Vdc 4 80kA at 550Vac gG A1 44 20
NIT6 550Vac/250Vdc 6 80kA at 550Vac gG A1 44 20 RS20
NIT10 550Vac/250Vdc 10 80kA at 550Vac gG A1 44 20
NIT16 550Vac/250Vdc 16 80kA at 550Vac gG A1 44 20
NIT20 550Vac/250Vdc 20 80kA at 550Vac gG A1 44 20



TIS, Class gG, 660-690Vac and 460Vdc, 35A-63A – Class gM, 660-690Vac and 460Vdc, 63A

Catalogue Number   Rated Voltage    Rated Current (Amps)    Breaking Capacity     Operating Class    BS Reference  Fixing Centre (mm)  Pack Quantity   Compatible Fuse Holders
TIS35 660-690Vac/460Vdc 35 80kA at 690Vac gG A3 73 20 RS63
TIS40 660-690Vac/460Vdc 40 80kA at 690Vac gG A3 73 20
TIS50 660-690Vac/460Vdc 50 80kA at 690Vac gG A3 73 20
TIS63 660-690Vac/460Vdc 63 80kA at 690Vac gG A3 73 20
TIS63M80 660-690Vac/460Vdc 63M80 80kA at 690Vac gM A3 73 20
TIS63M100 660-690Vac/460Vdc 63M100 80kA at 690Vac gM A3 73 20



TCP, Class gG, 660-690Vac and 350-460Vdc, 32A-100A – class gM, 660-690Vac and 350Vdc, 100A

Catalogue Number   Rated Voltage    Rated Current (Amps)    Breaking Capacity     Operating Class    BS Reference  Fixing Centre (mm)  Pack Quantity   Compatible Fuse Holders
TCP32 660-690Vac/460Vdc 32 80kA at 690Vac gG A4 94 20 RS100
TCP40 660-690Vac/460Vdc 40 80kA at 690Vac gG A4 94 20
TCP50 660-690Vac/460Vdc 50 80kA at 690Vac gG A4 94 20
TCP63 660-690Vac/460Vdc 63 80kA at 690Vac gG A4 94 20
TCP80 660-690Vac/350Vdc 80 80kA at 690Vac gG A4 94 20
TCP100 660-690Vac/350Vdc 100 80kA at 690Vac gG A4 94 20
TCP100M125 660-690Vac/350Vdc 100M125 80kA at 690Vac gM A4 94 20
TCP100M160 660-690Vac/350Vdc 100M160 80kA at 690Vac gM A4 94 20
TCP100M200 660-690Vac/350Vdc 100M200 80kA at 690Vac gM A4 94 20



TFP, Class gG, 660-690Vac and 350Vdc, 125-200A – class gM, 660-690Vac and 350Vdc, 200A

Catalogue Number   Rated Voltage    Rated Current (Amps)    Breaking Capacity     Operating Class    Fixing Centre (mm)  Pack Quantity
TFP125 660-690Vac/350Vdc 125 80kA at 690Vac gG 94 10
TFP160 660-690Vac/350Vdc 160 80kA at 690Vac gG 94 10
TFP200 660-690Vac/350Vdc 200 80kA at 690Vac gG 94 10
TFP200M250 660-690Vac/350Vdc 200M250 80kA at 690Vac gM 94 1



Industrial Red Spot Fuse Holders

Bussmann’s series of red spot fuse holders are a range of CSA certified IP20 finger-safe fuse holders for BS88 HRC industrial fuses in ratings up to 400A.

For more information on Bussmann’s industrial red spot fuse holders please click here.

For further information on Bussmann’s industrial fuses please contact us on 01444 243 452 or email [email protected].
