Voltage Stabilisers
Enerdoor offers a wide range of voltage stabilisers from 230-400Vac and rated power from 1-4000kVA. The advanced electronic control circuit ensures a fast response from 11 to 50 ms/volt and even with strong harmonic distortions, these devices ensure the true RMS value of the voltage. One of the main benefits of Enerdoor’s voltage stabilisers is when installed in existing systems these devices do not require new calculations for protection.

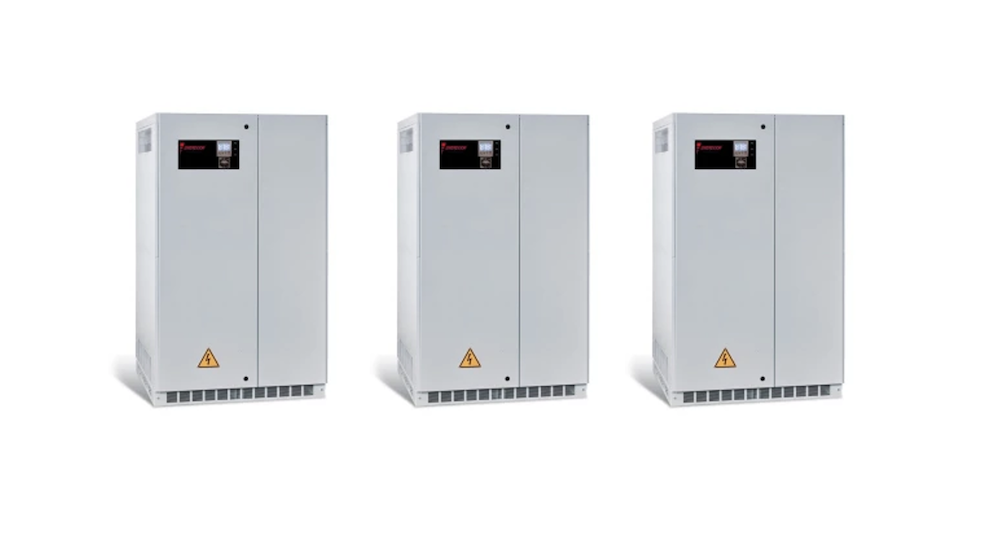

Voltage Stabilisers
Protect your equipment from harmful voltage fluctuations
Enerdoor offers an extensive range of single and three phase voltage stabilisers that regulate voltage through a series of transformers. A static control circuit drives the variable autotransformer that supplies the required voltage to a series transformer, either in phase or out of phase, to bring the mains to the rated value.
Voltage stabilisers protect electrical equipment from harmful high/low voltage fluctuations and at full load Enerdoor’s efficiency range is from 96% for small models to 98% for larger units. Enerdoor’s voltage stabilisers series ranges from a nominal voltage of 230-400Vac and rated power from 1-4000kVA.
View Enerdoor’s Voltage Stabiliser Brochure
Single Phase Voltage Stabilisers
FINSMC Single Phase Voltage Stabiliser
– Nominal voltage 230 Vac
– Rated power form 1 to 40 kVA
– Very fast response time
– Voltage variation ± 30%
– Square section linear core
FINSMT Single Phase Voltage Stabiliser
– Nominal voltage 230 Vac
– Rated power from 1 to 40 kVA
– Compact housing
– Fast response time
– Voltage variation ± 30%
– Toroidal core technology
Three Phase Voltage Stabilisers
Enerdoor’s three phase voltgae stabilisers are available in two versions: FINSTT and FINSTC.
They both perform voltage regulation by an average of three phases and are suitable for lines with balanced voltage and for an unbalance between phases up to 50%. These models are equipped with one stabilising circuit to ensure a common regulation of the three-phase and may be connected to input mains without neutral.
FINSTC Three Phase Voltage Stabiliser
– Nominal voltage 480 Vac
– Rated power from 22 to 780 kVA
– Very fast response time
– Voltage variation ± 30%
– Square section linear core
FINSTCA Three Phase Asymmetric Voltage Stabiliser
– Nominal voltage 480 Vac
– Rated power from 55 to 800 kVA
– Very fast response time
– Voltage variation +15% to 35%
– Square section linear core
FINSTCY Three Phase Asymmetric Voltage Stabiliser
– Nominal voltage 480 Vac
– Rated power from 48 to 4000 kVA
– Very fast response time
– Voltage variation ± 30%
– Square section linear core
FINSTT Three Phase Voltage Stabiliser
– Nominal voltage 480 Vac
– Rated power from 3 to 31 kVA
– Compact housing
– Fast response time
– Voltage variation 30%
– Toroidal core technology
FINSTTA Three Phase Asymmetric Voltage Stabiliser
– Nominal voltage 250 Vac
– Rated power from 3 to 40 kVA
– Compact housing
– Fast response time
– Voltage variation +15% to 35%
– Toroidal core technology
FINSTTY Three Phase Asymmetric Voltage Stabiliser
– Nominal voltage 480 vac
– Rated power from 3 to 120 kVA
– Compact housing
– Fast response time
– Voltage variation ± 30%
– Toroidal core technology
Optional Fittings
– Remote control
– Input or output circuit breaker (with or without earth leakage)
– Manual or automatic by-pass
– Isolating transformer
– Step-up/step-down transformer or autotransformer
– Surge Arrester (lightning protection)
– Over/under voltage protection
– Thermal relay
– Reversed phase sequence and phase failure protection
– IP54 indoor or outdoor versions
View Enerdoor’s complete product range here
Additional voltages are available on request, for further information on Enerdoor’s voltage stabilisers, please contact us on 01444 243 452 or email [email protected].
