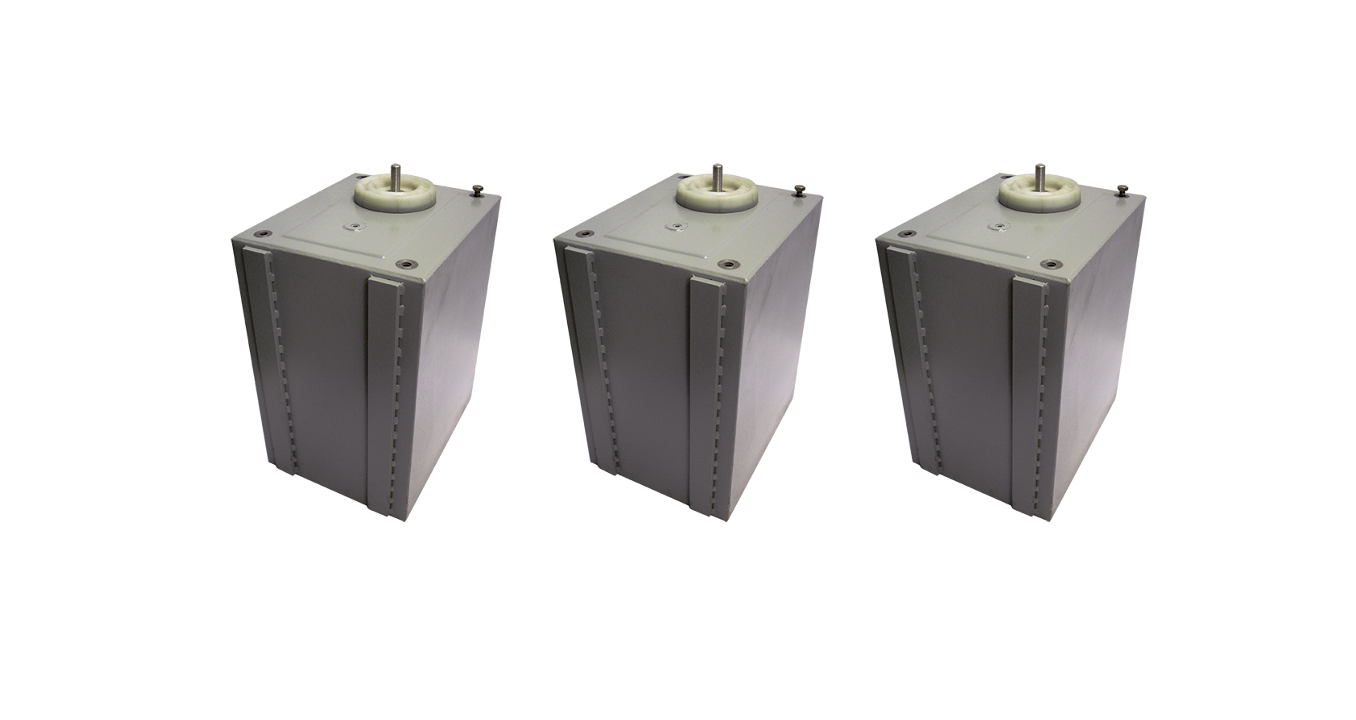

Energy Storage Capacitors
Custom energy storage capacitors designed to the strictest specifications, used in Military, Medical and Industrial applications.
Energy Storage Capacitors
Designed for a wide range of Military, Medical and Industrial applications
API Capacitors design and manufacture energy storage capacitors that are not limited to a catalogue range. Current, voltage, size, mass and terminations
can be matched to the customer’s requirement and application.
High reliability is achieved using ultra low defect density, high isotactic, metallised polypropylene dielectric film incorporating an extended working temperature range and controlled self-healing capability. Elements are wound on the latest precision edge controlled automatic winding machines and high conductivity copper is used for low resistance internal connections.
API’s capacitors are finished in powder coated corrosion free metal or insulated cases and filled with an environmentally safe oil or dry leak free resin.
Download Energy Storage Capacitors Datasheet
Features
- High reliability
- Controlled self-healing technology
- Oil filled or dry resin filled
- Metal or insulated cases
- UV resistance, halogen free, low smoke and flame retardant materials
Typical Applications
API’s energy storage capacitors are used in Military, Medical and Industrial applications.
- Oceanography (Subsea Surveys, Sparkers, Boomers)
- Power Electronics (Welding, Forming, Magnetisers, Demagnetisers, PFN’s)
- Research (Particle Accelerators ‘LHC, ISIS’, Lasers)
- Testing (Lightning Simulation, High Voltage Capacitor Banks)
- Defence (Range Finders, Railguns, Radar, Missile Systems, EMP)
- Food Industry (UV Sterilisation)
Typical Characteristics
| Rated Capacitance (C): | 0.01 to 30,000μF |
| Peak Repetitive Voltage (UNDC): | 100 to 50,000V |
| Energy: | 100 to 100,000J |
| Life: | 1000 to 109 Shots |
| Ambient Temperature (0amb): | -40 to +85°C |
| Case Materials: | Steel, Stainless Steel, Aluminium and Various Insulated Materials |
| Termination: | Threaded M5-M16 Copper/Brass, Ceramic/Polymer insulators, Busbar, Cable and Laminated connections |
| Related Standards: | BS EN 61071 |
Custom Designed Capacitors
Designed to meet all specifications, our technical teams can work closely with your design team at concept stage or at the later stages of a project, ensuring you find the right design for your application. Alternatively we also offer like for-like replacements for older retro-fit designs.
Looking for Custom Designed Energy Storage Capacitors?
We work with API Capacitors to offer custom solutions and custom designed capacitors for our customers. We work collaboratively with you to keep your project on time and in budget.
