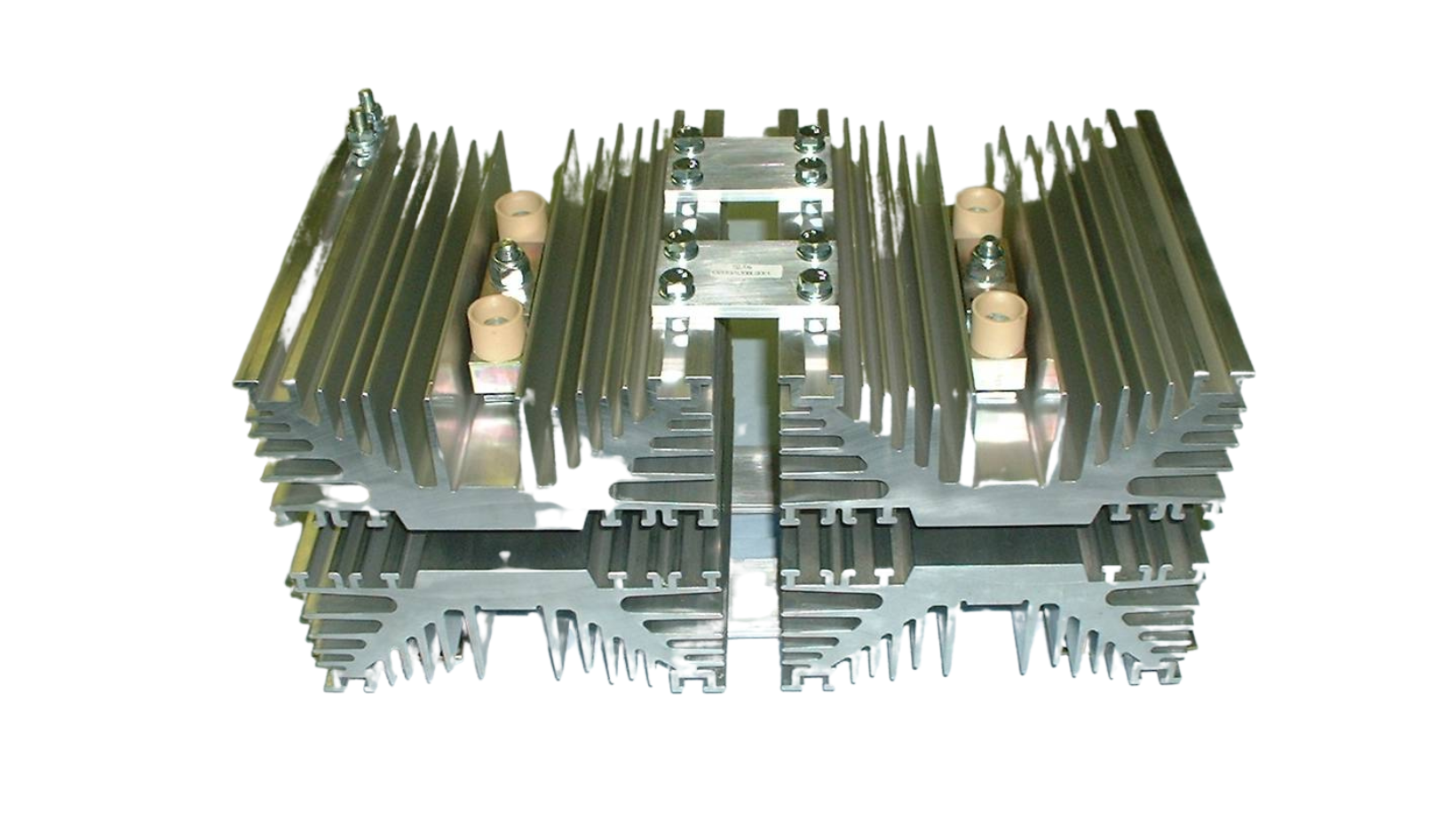

Single Phase Fully Controlled Voltage Regulators - W1C
Our single phase voltage regulators are designed and produced according to customer specifications and are suitable for battery DC power supplies, motor speed control and consumer electronics.
Single Phase Fully Controlled Voltage Regulators - W1C
Designed for choppers, UPS, plating, heating, and pulse power applications.
We offer power assemblies configured to suit your application and strict performance requirements. And offer the following options:
Fitted line fuses, indicators and micro switches, Dv/Dt suppression, MOV overvoltage suppression, Hi/Lo thermal trips, water cooled options, higher voltages, IP20 enclosed and trigger circuits.
Isolated Devices
DWG No | Max Output Cont Amps @ 30C | Max Output Cont Amps @ 40C | Cooling Mode | DEVICE I2T A2S *1000 @TVJ | DEVICE VRRM MAX | Height mm | Width mm | Depth mm | Weight KG |
W1C 020003 | 40 | 37 | NAC | 1.05 | 1600 | 150 | 96 | 80 | 0.8 |
W1C 020003 | 55 | 50 | NAC | 9.1 | 1800 | 150 | 96 | 80 | 0.8 |
W1C 020003 | 65 | 60 | NAC | 20 | 1800 | 150 | 96 | 80 | 0.8 |
W1C 020005 | 100*/105 | 95 | NAC | 9.1 | 1800 | 180 | 125 | 180 | 3.2 |
W1C 020005 | 140 | 130 | NAC | 20 | 1800 | 180 | 125 | 180 | 3.2 |
W1C 020007 | 148 | 137 | FAC | 9.1 | 1800 | 230 | 125 | 180 | 4 |
W1C 020013N | 190 | 170 | NAC | 137 | 1800 | 180 | 125 | 180 | 3.2 |
W1C 020007 | 200*/212 | 196 | FAC | 20 | 1800 | 230 | 125 | 180 | 4 |
W1C 020011N | 220 | 200 | NAC | 137 | 1800 | 300 | 125 | 180 | 5.5 |
W1C 020015N | 300 | 270 | NAC | 320 | 1800 | 300 | 135 | 180 | 6 |
W1C 020013 | 320 | 290 | FAC | 137 | 1800 | 230 | 125 | 180 | 4 |
W1C 020011 | 350 | 325 | FAC | 137 | 1800 | 350 | 125 | 180 | 6.5 |
W1C 021930 | 440 | 400 | NAC | 2800 | 1800 | 450 | 125 | 240 | 11 |
W1C 020015 | 450 | 419 | FAC | 245 | 1600 | 350 | 135 | 180 | 7 |
W1C 020015 | 500 | 465 | FAC | 304 | 1800 | 350 | 135 | 180 | 7 |
W1C 020015 | 525 | 487 | FAC | 320 | 1800 | 350 | 135 | 180 | 7 |
W1C 020021 | 650 | 620 | FAC | 320 | 1800 | 400 | 190 | 200 | 9.5 |
W1C 020955 | 770 | 700 | FAC | 1050 | 1800 | 460 | 125 | 200 | 10.5 |
W1C 020956 | 950 | 880 | FAC | 1050 | 1800 | 500 | 190 | 230 | 11.5 |
W1C 020957 | 1125 | 1025 | FAC | 2800 | 1800 | 550 | 190 | 240 | 14 |
For further information on the single phase fully controlled voltage regulators (W1C) please contact us on 01444 243 452 or email enquiries@gdrectifiers.co.uk.
