Isolating & Safety Transformers with Universal Input
Isolating & safety transformers with universal input are available from 150-1000VA and are designed for worldwide use.
![](https://www.gdrectifiers.co.uk/wp-content/uploads/2022/12/Transformers-with-universal-input-category-image.png)

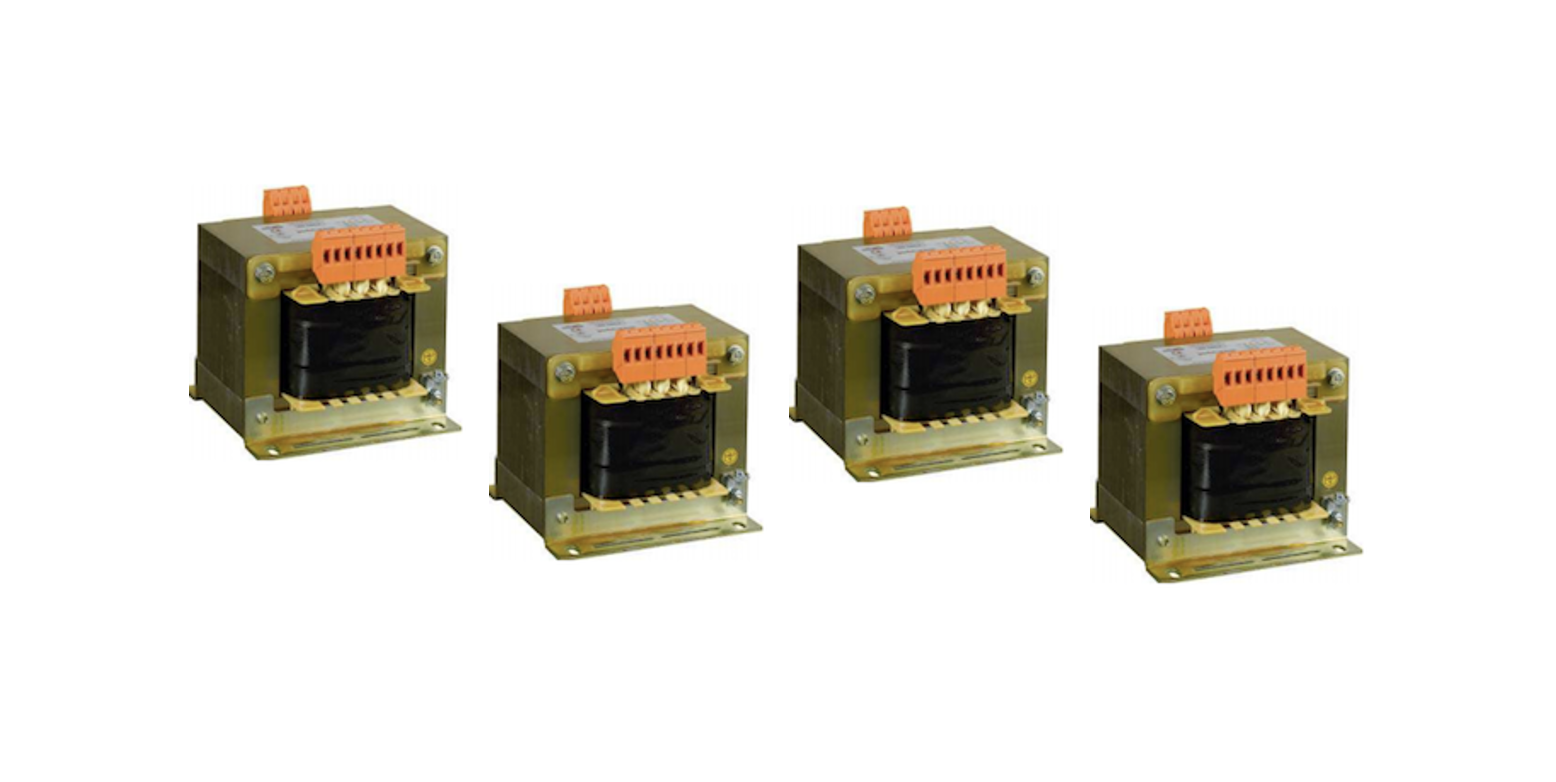

Single Phase Isolating and Safety Transformers with Universal Input
Suitable for most industrial applications
Meth Kft’s isolating and safety transformers with universal input are available from 150-1000VA and are designed for worldwide use and cater to the requirements for control safety isolating and isolating transformers suitable for most industrial applications.
T1U
The T1U is a low voltage single-phase universal input isolating and safety transformer, suitable for any industrial application where different input voltages are required.
Rated Input Voltage (Standard): 208V, 230V, 380V, 400V, 420V, 440V, 460V, 480V, 500V, 525V, 550V
Rated Output Voltage: 2x115V or 2x12V or 2x24V
Rated Power: from 150-1000VA
Insulation Class: class F
Temperature Class: class F
Ambient Temperature: Ta=40°C
Protection Degree: IP00 – class I
Test Voltage: 4.2KV/1’
Terminals: terminal blocks
Standards
– CEI-EN 61558.2-4 and 2-6 – isolating and safety transformers
– IEC 61558.2-4 and 2-6
– UL 5085 1 and 2 – low voltage transformers
– CSA 22.2 No.66
Certifications
– FILE E169331-vol. 2-sec. 1-2
– FILE E215141-vol. 1-sec. 1
T1U Technical Data
Part Number | Rated Power (VA) | Dimensions (mm) | Weight (Kg) | ||||
A | B | C | D | E | |||
T1U-150 | 150 | 96 | 92 | 105 | 84 | 75 | 2.6 |
T1U-250 | 250 | 121 | 95 | 125 | 90 | 70 | 3.6 |
T1U-400 | 400 | 121 | 115 | 125 | 90 | 90 | 5.7 |
T1U-500 | 500 | 121 | 135 | 125 | 90 | 110 | 7 |
T1U-630 | 630 | 151 | 117 | 140 | 120 | 90 | 7.4 |
T1U-800 | 800 | 151 | 137 | 140 | 120 | 110 | 9.8 |
T1U-1000 | 1000 | 151 | 157 | 140 | 120 | 130 | 12.1 |
For further information on isolating and safety transformers with universal input or to discuss your requirements, please call us on: 01444 243 452 or email: enquiries@gdrectifiers.co.uk.
