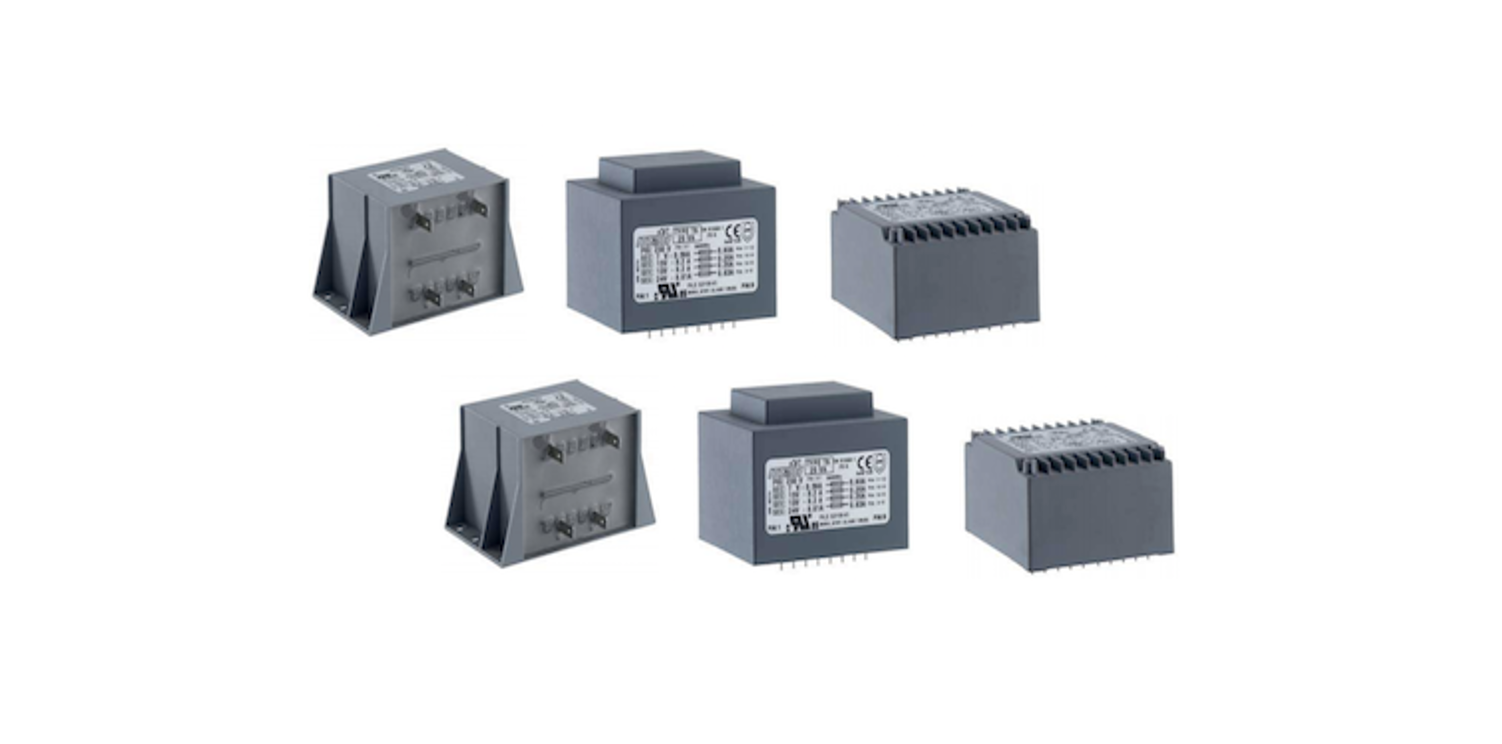

Six grey PCB Transformer devices.

Please note we are still adding products to our new website. Can't see the product you need? Contact us on 01444 243 452 / [email protected]

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Single Phase PCB Transformers

Safety transformers encapsulated with epoxy resin suitable for PCB use (T6-T7) or use in critical ambients

Meth Srl offers a comprehensive range of PCB transformers that provide safe electrical isolation for the input and output sides as a safety transformer. The single-phase PCB transformers are ENEC-KEMA and UL certified, providing high performance and reliability for use in critical ambients.



T5, T6 and T7

The T5, T6 and T7 are single-phase transformers encapsulated with epoxy resin suitable for PCB use (T6 and T7) or for use in critical ambients (T5).



Rated Input Voltage: from 100-250V

Rated Output Voltage: from 12-42V

Rated Power: T5: from 12-70VA

T6: from 3.2-100VA

T7: from 4-60VA

Insulation Class: class B

Temperature Class: class B

Ambient Temperature: Ta=70°C

Protection Degree: IP 00

Test Voltage: 4.2KV/1’



T5: input and output with 6.3mm faston

T6: for PCB insertion with pins with Ø 0 .8mm

T7: for PCB low profile with pins with Ø 0 .8mm

T5, T6 and T7 Datasheet



Standards

  • CEI-EN 61558, 2-6 – safety transformers
  • IEC 61558, 2-6 – safety transformers
  • UL-CSA 5085 1-2 – low voltage transformers



Certifications

  • ENEC-KEMA File: 3502609 03-04-05
  • UL Insulation System class B File E215141



T5 Technical Data

Part Number        Rated Power (VA)     Dimensions (mm)                   Weight (Kg)    Losses (W)  Efficiency (%)   ∆V (%)
A B C D E no-load
T5-12 12 82 48 50 68 11 0.42 1 76 15
T5-20 20 82 54 54 74 13 0.56 1.2 87 14
T5-30 30 94 59 60 82 13 0.76 1.5 82 14
T5-35 35 94 59 71 82 36 1.04 2.2 85 9
T5-55 55 105 66 73 93 38 1.32 2.7 86 9.9
T5-70 70 105 66 83 93 48 1.54 3.5 87 8.8



T6 Technical Data

Part Number         Rated Power (VA)     Dimensions (mm)                   Weight (Kg)    Losses (W)  Efficiency (%)   ∆V (%)
A B C D E F G no-load
T6-3.2 3.2 42 35.5 27.5 – – 5 25 0.16 0.5 69 25
T6-4 4 43 37 33 – – 5 25 0.18 0.9 69 25
T6-5 5 44.2 37.2 32 – – 5 25 0.19 1 66 27
T6-10 10 50.2 42.2 34.5 – – 5 27.5 0.28 1.2 71 24
T6-12 12 50.2 42.2 38.1 – – 5 27.5 0.32 1.4 73 22
T6-16 16 74 47.5 40 65 – 5 32.5 0.42 1.6 72 24
T6-20 20 81.5 53.7 48 72.5 43.5 5 32.5 0.54 1.9 80 14
T6-25 25 81.5 53.7 53 72.5 43.5 5 32.5 0.62 2.2 81 13
T6-30 30 81.5 53.7 58 72.5 43.5 5 32.5 0.72 2.4 83 12
T6-35 35 87.5 53.7 58 78 48 5 35 0.78 2.6 84 12
T6-50 50 87.5 58.6 68 78 48 5 35 1.05 3.2 85 11
T6-60 60 102 58.6 65 90 57 7.5 39 1.35 3.4 86 11
T6-100 100 102 69 75 90 57 7.5 39 1.6 4.5 86 13



 T7 Technical Data

Part Number                Rated Power (VA)   Dimensions (mm)       Weight (Kg)    Losses (W)  Efficiency (%)   ∆V (%)
A B C no-load
T7-4 4 53 44 17.6 0.16 1.2 55 40
T7-6 6 53 44 22.6 0.18 1.1 63 33
T7-10 10 68 44 28.6 0.19 1.1 70 26
T7-14 14 68 57.5 24.2 0.28 1.6 70 26
T7-18 18 68 57.5 27.2 0.32 1.4 74 23
T7-24 24 68 57.5 31 0.42 1.7 76 21
T7-30 30 68 57.5 35.5 0.54 1.8 78 19
T7-40 40 83.5 69 37 0.62 2.2 78 19
T7-60 60 83.5 69 46 0.72 3.1 78 17



For further information on PCB transformers or to discuss your requirements, please call us on: 01444 243 452 or email: [email protected].
