Low Losses Eco Design Transformers
Selection of three-phase eco design transformers built to the EN 61558 directive with ratings up to 30kVA.
Three Phase Low Losses Eco Design Transformers
Designed for maximum utilisation of the transformer design
Meth Srl designs and manufactures a range of three-phase eco design transformers built to the EN 61558 directive with ratings up to 30kVA. Meth Srl’s range of eco design transformers offer high efficiency in a compact design, providing low losses and inrush current.
T3SL

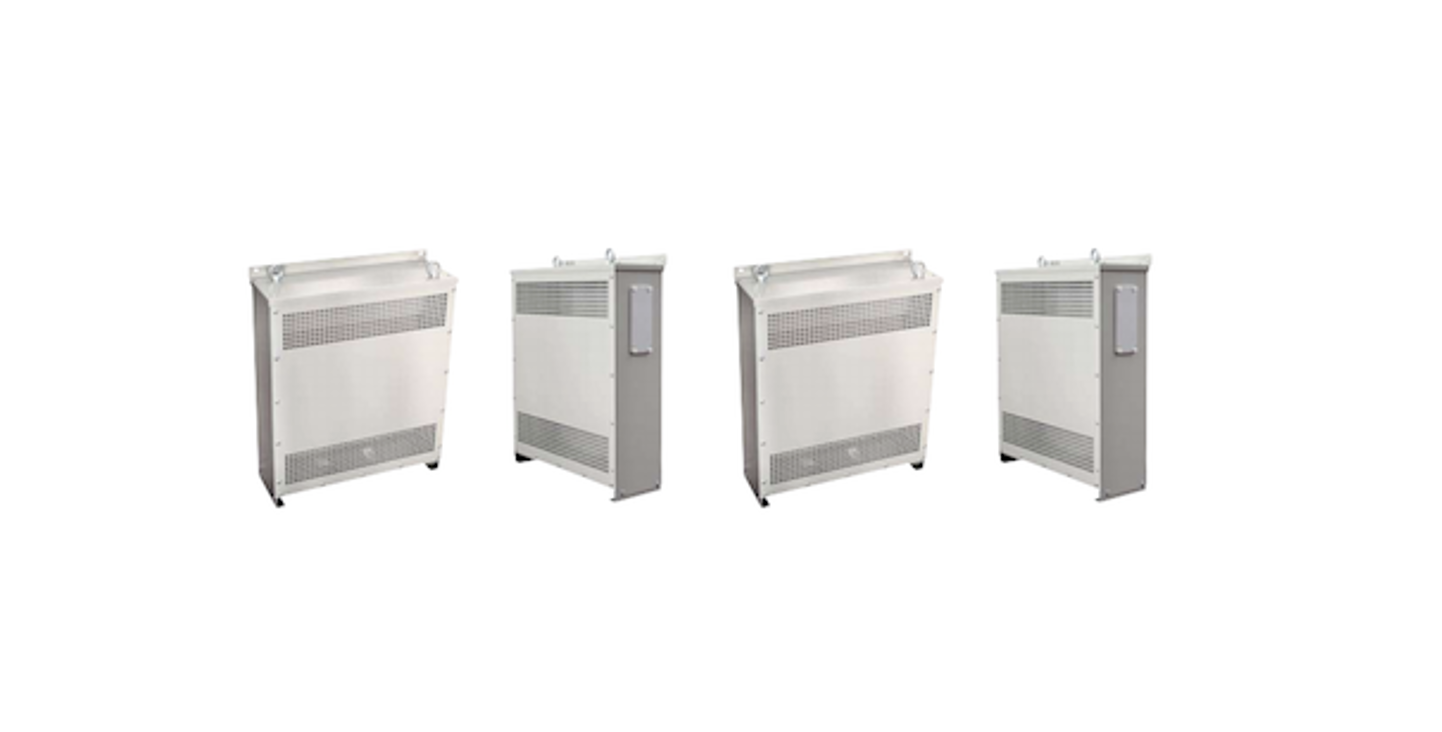

The T3SL low losses three-phase slim line transformers feature an eco-design and are suitable for maximum utilisation of the transformer design. Featuring very low losses and inrush current and the compact design saves space and reduces energy consumption.
Rated Input Voltage: 230V
Rated Output Voltage: 400V
Rated Power: 6.3-30kVA
Insulation Class: class F-H
Temperature Class: class B
Ambient Temperature: Ta=40°C
Protection Degree: with IP20
Standard Vector Group: YNd11 (others available upon request)
Inrush Current: ≤10 x In
Test Voltage: 4.2KV/1’
Terminals: terminal blocks
Standard
– EN 615588, p.2-4 and directive 2009/125/EC
T3SL Technical and Electrical Data
| Part Number | Rated Power (KVA) | Dimensions (mm) | Weight (Kg) | Losses (W) | I sec (A) | Efficiency (%) | Ucc (%) | Ucc R (%) | Ucc tot (%) | Inrush Current (x in) | |||
| A | B | C | no-load | load | |||||||||
| T3SL-6.3 | 6.3 | 640 | 220 | 800 | 117 | 38 | 132 | 9.1 | 97.3 | 0.82 | 2.1 | 2.25 | 13 |
| T3SL-10 | 10 | 640 | 220 | 800 | 134 | 45 | 212 | 14.4 | 97.5 | 1.12 | 2.12 | 2.4 | 11 |
| T3SL-12.5 | 12.5 | 640 | 220 | 800 | 145 | 50 | 273 | 18.05 | 97.4 | 1.11 | 2.19 | 2.46 | 10 |
| T3SL-16 | 16 | 640 | 220 | 800 | 162 | 58 | 386 | 23.1 | 97.3 | 1.72 | 2.42 | 2.97 | 9 |
| T3SL-20 | 20 | 790 | 240 | 1050 | 177 | 64 | 477 | 28.9 | 97.3 | 1.71 | 2.39 | 2.94 | 8 |
