Solar Surge Protection Devices
Littelfuse’s SPD2 PV Series offers devices for solar string box and inverter applications, available in 1100Vdc -1500Vdc in the 3+0 configuration. These globally-compliant, cost-effective Type 2 Surge Protective Devices have higher nominal and total discharge current protection helping to limit transient overvoltage to equipment mitigating costly damage and downtime.
Solar Surge Protection Devices
Specifically designed for solar string boxes and inverter applications
Littelfuse’s SPD2 PV Series offers devices for solar string box and inverter applications, available in 1100 and 1500Vdc in the 3+0 configuration. Solar surge protection devices provide equipment protection from transient overvoltage events last micro-seconds within the solar industry.
Solar surge protection devices provide equipment protection from transient overvoltage events lasting micro-seconds, by limiting the overvoltage to the equipment during these events reducing costly damage and downtime.

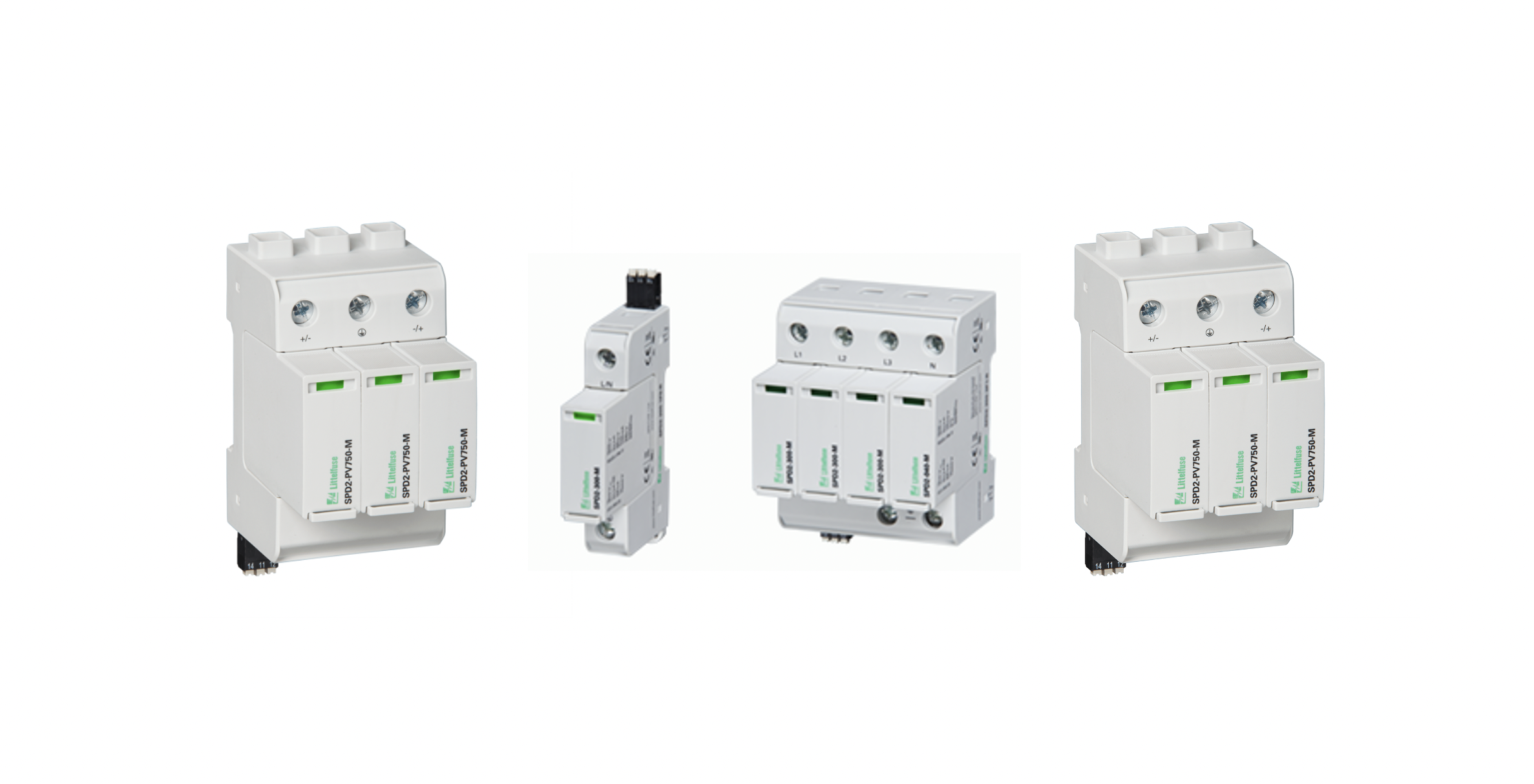

SPD2 PV
The surge protection devices for solar string box and inverter applications are available in 1100 and 1500Vdc in the 3+0 configuration.
Maximum Continuous Voltage: 1100Vdc, 1500Vdc
Nominal Discharge: 15kA, 20kA
Maximum Discharge: 40kA
Features
- Capability to clamp and withstand high-energy transients
- No additional overcurrent protection devices required in UL applications
- Compact footprint
- Visual life indicator
- Pluggable modules
- Thermal protection
- IP20 protection rating
Benefits
- Ensure low-residual voltage during high-energy surge events and higher nominal discharge current to prevent disruption
- Reduces the number of components and costs required for protection
- Increases panel design flexibility
- Quick visual determines module replacement status to avoid loss of protection
- Fast and simple to replace, minimising maintenance and downtime
- Eliminates catastrophic failure
- Finger-safe design increases worker protection
For further information on Littelfuse’s range of surge protection devices, please call us: 01444 243 452 or email: [email protected].
