Solar TVS Diodes

Littelfuse’s solar TVS diodes are designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

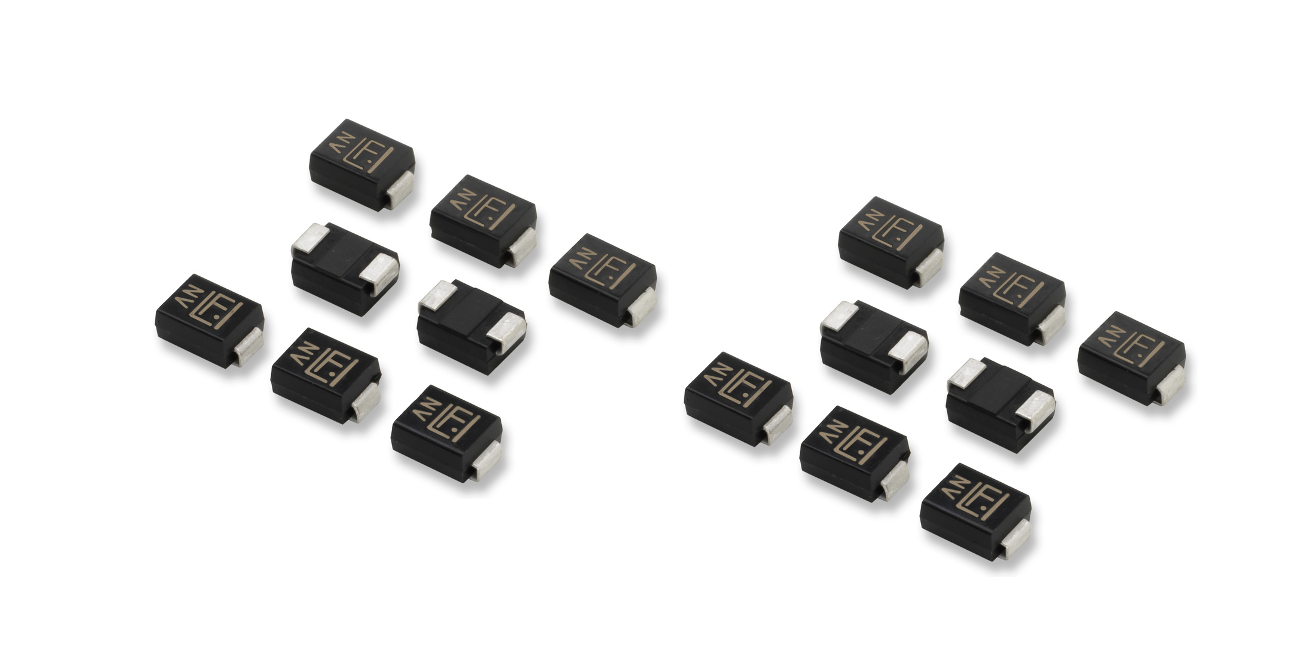

Solar TVS Diodes image

Please note we are still adding products to our new website. Can't see the product you need? Contact us on 01444 243 452 / [email protected]

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Solar TVS Diodes

Littelfuse’s TVS components are designed for protection of I/O interfaces, Vcc bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.



P6KE

600W Axial Leaded Transient Voltage Suppression (TVS) Diode

The P6KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Littelfuse P6KE Solar TVS Diode by GD Rectifiers

Features

  • Halogen-free and RoHS compliant
  • Typical maximum temperature coefficient ΔVBR = 0.1% — VBR@25°C
  • Glass passivated junction
  • 600W peak pulse capability at 10—1000µs waveform, repetition rate (duty cycles):0.01%
  • Fast response time: typically less than 1.0ps from 0 Volts to BV min
  • Excellent clamping capability
  • Low incremental surge resistance
  • Typical IR less than 1µA above 13V
  • High temperature soldering guaranteed: 265°C./10 seconds/ 0.375,(9.5mm) lead length, 51bs., (2.3kg) tension
  • Plastic package has Underwriters Laboratory Flammability classification 94V-O
  • Matte Tin Lead-free plated

Applications

  • Protection of electronic equipment from voltage transients

VR (Vso): 5.5, 5.8, 6.05, 6.4, 6.63, 7.02, 7.37, 7.78, 8.1, 8.55, 8.92, 9.4, 9.72, 10.2, 10.5, 11.1,12.1, 12.8, 12.9, 13.6, 14.5, 15.3, 16.2, 17.1, 17.8, 18.8, 19.4, 20.5, 21.8, 23.1, 24.3, 25.6, 26.8, 28.2, 29.1, 30.8, 31.6, 33.3, 34.8, 36.8, 38.1, 40.2, 41.3, 43.6, 45.4, 47.8, 50.2, 53, 55.1, 58.1, 60.7, 64.1, 66.4, 70.1, 73.7, 77.8, 81, 85.5, 89.2, 94, 97.2, 102, 105, 111, 121, 128, 130, 136, 138, 145, 146, 154, 162, 171, 175, 185, 202, 214, 243, 256, 284, 300, 324, 342, 356, 376, 408, 434, 450, 459, 467, 477, 486, 495, 512

Watts (W): 600

Ipp 10×1000μs (A): 0.69, 0.75, 0.8, 0.9, 1, 1.1, 1.2, 1.3, 1.4, 1.5, 1.7, 1.8, 1.9, 2.1, 2.2, 2.3, 2.5, 2.6, 2.8, 2.9, 3.2, 3.4, 3.7, 3.8, 4, 4.2, 4.5, 4.9, 5.1, 5.4, 5.5, 5.9, 6.1, 6.6, 6.8, 7.2, 7.4, 7.9, 8.2, 8.7, 8.9, 9.4, 9.6, 10.3, 10.5, 11.3, 11.6, 12.2, 12.6, 13.3, 14, 14.7, 15, 16.3, 17, 18.4, 19, 19.9, 21, 22, 23, 24.2, 26, 27, 27.1, 28.8, 32, 33.5, 35, 36.5, 37, 39.1, 40, 42.1, 44, 45.5, 48, 50.4, 51, 54, 56, 58.1

Datasheet



SMBJ

600W Surface Mount TVS Diode

The SMBJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Littelfuse SMBJ Solar TVS Diode by GD Rectifiers

Features

  • Excellent clamping capability
  • Low incremental surge resistance
  • Typical IR less than 1µA above 12V
  • For surface mounted applications to optimise board space
  • Low profile package
  • Typical failure mode is short from over-specified voltage or current
  • Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
  • IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
  • ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
  • EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
  • Built-in strain relief
  • Fast response time: typically less than 1.0ps from 0V to BV min
  • 600W peak pulse power capability at 10×1000μs waveform, repetition rate (duty cycles):0.01%
  • Typical maximum temperature coefficient ΔVBR= 0.1% × VBR@25°C × ΔT
  • Glass passivated chip junction
  • High temperature soldering guaranteed: 260°C/40 seconds at terminals
  • Plastic package has underwriters laboratory flammability 94V-O
  • Matte tin lead–free plated
  • Halogen free and RoHS compliant

Applications

  • I/O interfaces
  • VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications

VR (Vso): 5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 20, 22, 24, 26, 28, 30, 33, 36, 40, 43, 45, 48, 51, 54, 58, 60, 64, 70, 75, 78, 85, 90, 100, 110, 120, 130, 150, 160, 180, 188, 200, 220, 250, 300, 350, 400, 440

Watts (W): 600

Ipp 10×1000μs (A): 0.9, 1.1, 1.3, 1.5, 1.7, 1.9, 2, 2.1, 2.2, 2.3, 2.5, 2.9, 3.1, 3.4, 3.7,   4.1, 4.4, 4.8, 5, 5.3, 5.9, 6.2, 6.5, 6.9, 7.3, 7.8, 8.3, 8.7, 9.3, 10.4, 11.3, 12.4, 13.3, 14.3, 15.5, 16.9, 18.6, 20.6, 21.8, 23.1, 24.6, 25.9, 28, 30.2, 33, 35.3, 39, 41.7, 44.2, 46.6, 50, 53.6, 58.3, 65.3

Datasheet



For further information on Solar TVS Diodes, please call GD Rectifiers on: 01444 243 452 or email: [email protected].
