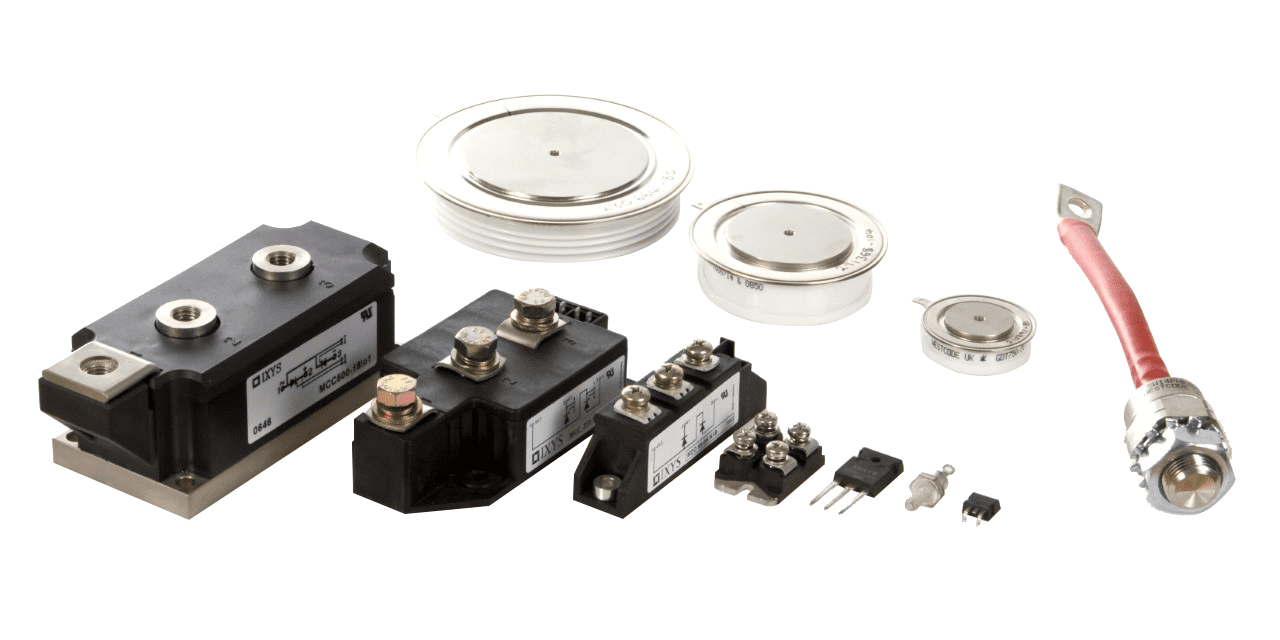

Discrete diodes and thyristor modules on a white background

Please note we are still adding products to our new website. Can't see the product you need? Contact us on 01444 243 452 / [email protected]

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Obsolete Semiconductors

Experts in obsolete and hard to find components

GD Rectifiers is a UK Distributor of obsolete and hard to find electronic components, including integrated circuits, semiconductors and resistors. We work hard to find our customers a modern day alternative to obsolete components.

At GD Rectifiers, we manufacture a number of flat base conversion kits used to replace obsolete flat based diodes and thyristors. Flat based devices are historically used in rotating applications and can be replaced using either a stud with the thread removed or a capsule combined with a GD Rectifiers clamp solution.



Our most popular clamp/capsule solutions are the standard 010160 and the three off centre 010161, 010161A and 010161B versions. The off centre versions are useful when there are space issues to consider.



Obsolete Flat Based Devices Cross Reference Tool

Diodes

Old Pt No Itav/Case Max Vrrm New Pt No + Hardware Drawing Itav / Case Max Vrrm
SWxxHHN300 380A / 100C 1500 W0508SBxxx 020700 508A / 55C 1500
SWxxHHR300 380A / 100C 1500 W0508RBxxx 020700 508A / 55C 1500
SWxxHHN320 320A / 100C 2400 W0438SDxxx 020700 438a / 55C 2400
SWxxHHR320 320A / 100C 2400 W0438RDxxx 020700 438a / 55C 2400
SWxxHHN380 370A / 100C 2400 W0503SDxxx 020700 503A / 55C 2400
SWxxHHR380 370A / 100C 2400 W0503RDxxx 020700 503A / 55C 2400
SWxxHHN400 400A / 120C 1500 W0628SBxxx 020700 628A / 55C 1500
SWxxHHR400 400A / 120C 1500 W0628RBxxx 020700 628A / 55C 1500
Itav / Tsink
SWxxKBN515 510A / 100C 4400 W1185LCxxx 010160 1155A / 55C 4500
SWxxKBR515 510A / 100C 4400
SWxxKBN595 590A / 100C 3600 W1411LCxxx 010160 1411A / 55C 3600
SWxxKBR595 590A / 100C 3600
SWxxKBN635 630A / 100C 3000 W1524LCxxx 010160 1524A / 55C 3000
SWxxKBR635 630A / 100C 3000
SWxxKBN805 800A / 100C 2200 W1748LCxxx 010160 1748A / 55C 2500
SWxxKBR805 800A / 100C 2200
SWxxKBN935 935A / 100C 1200 W2058LCxxx 010160 2058A / 55C 1400
SWxxKBR935 935A / 100C 1200

Thyristors

Old Pt No Itav/Case Max Vrrm New Pt No + Hardware Drawing Itav / Case Max Vrrm
N260KHx 245A / 85C 3600 N0646LCxxx 010160 646A / 55C 3600
N330KHx 324A / 85C 2400 N0910LSxxx 010160 910A / 55C 2600
N350MHx 350A / 85C 1800 N1114LSxxx 010160 1114A / 55C 1800
N370MHx 370A / 85C 1800 N1114LSxxx 010160 1114A / 55C 1800

Fast Turn Off Thyristors

Old Pt No Itav/Case Max Vrrm tq us New Pt No + Hardware Drawing Itav / Case Max Vrrm
P300KHx 300A / 85C 1200 20 P1007LS12D 010160 1007A / 55C 1200
P350KHx 350A / 55C 800 20 P1007LS12D 010160 1007A / 55C 1200



For further information on obsolete semiconductors, please contact us on 01444 243 452 or email [email protected].
