Converters for Trains
Various versions of converters for trains are available, either for roof mounting or for mounting in the engine room which can be air or liquid cooled. The modular design enables easy and low-cost maintenance. These solutions also enable compact and light-weighted vehicle designs.
Converters for Trains
Enabling compact and light-weighted vehicle designs
KONČAR has extensive experience in the development of equipment for locomotives, passenger coaches and tram cars, as well as the application of modern solutions and technologies were the best basis for developing this generation of converters.
Different versions of converters are possible, either for roofing mounting or mounting in the engine room which could be air or liquid cooled. The modular design enables easy and low-cost maintenance, their solutions also enable compact and light-weighted vehicle designs.

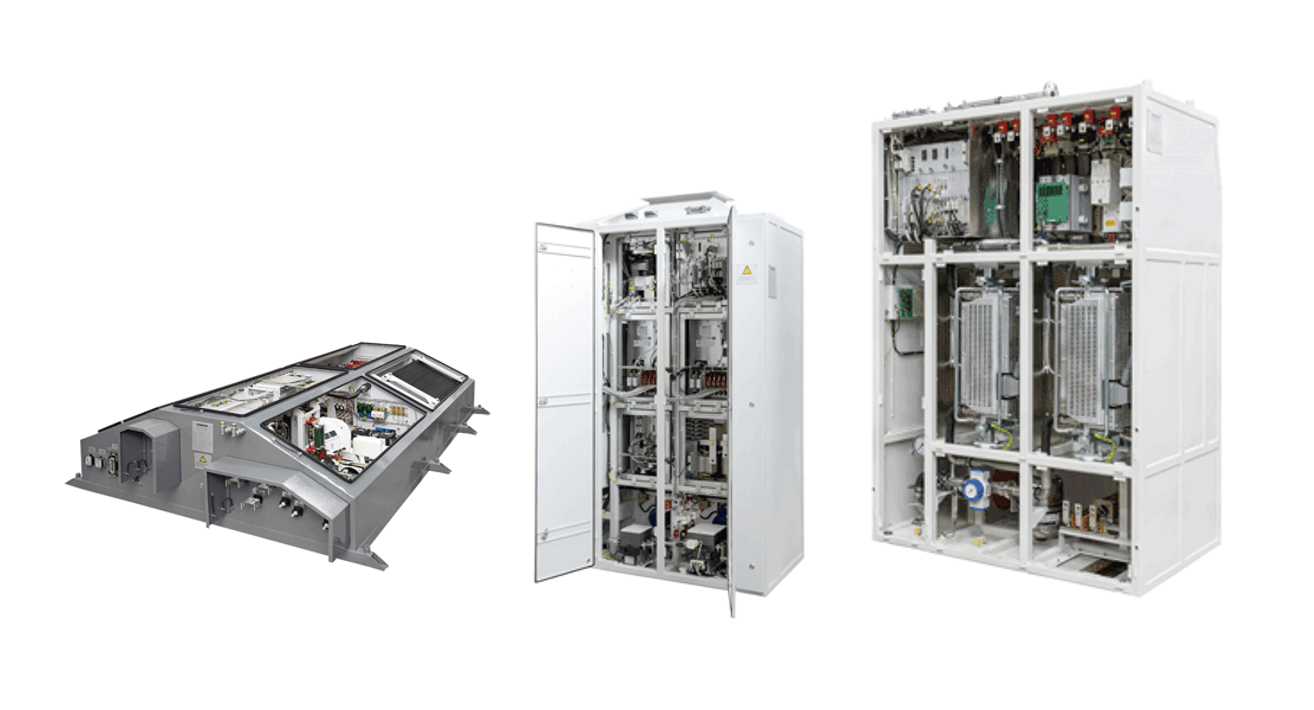

KONČAR provide equipment for electric multiple units as well as diesel electric multiple units, the range features: KONTRAC GP550DE, KONTRAC GP550AC and KONTRAC PN110AC.
Propulsion and Auxiliary Converter for Diesel-electric Rail Vehicles – KONTRAC GP550DE
The KONTRAC GP550DE converts the variable voltage from diesel generator into drive power for the traction motors, three-phase auxiliary power supply for the train onboard consumers and into DC auxiliary power supply for charging train batteries. This converter is a robust and solid unit incorporating modern IGBT technology.
Download KONTRAC GP550DE Datasheet
Features
- Modular design of power units
- High energy efficiency
- Roof mounting
- Easy maintenance
- Motor friendly
- Integrated auxiliary converter
- Integrated battery charger
- Latest IGBT technology
- Liquid cooling system
- Galvanic isolated output
Technical Data
Input voltage | 1000VDC – 2000VDC |
Propulsion output | 475kW |
AC outputs | 3 x 400V, 50Hz, 55kVA230V, 50Hz, 2,3kVA |
DC output | 24VDC 10kW |
Cooling | Liquid cooled |
Size | 3195 x 1820 x 715mm |
Weight | 1485kg |
Connecting interface | CAN / MVB / Ethernet |
Propulsion Converter for Electric Multiple Unit – KONTRAC GP550AC
The KONTRAC GP550AC converts the power from the transformer outputs of AC network in to propulsion power for the traction motors. It has sinusoidal input current in phase with voltage and with low harmonic content. During breaking, the converter feeds back energy to the network. All control, protective, communication and monitoring functions are implemented in one control electronics inside the converter.
Download KONTRAC GP550AC Datasheet
Features
- Regenerative braking capability
- Modular design of power units
- High energy efficiency
- Machine room mounting
- Easy maintenance
- Line friendly
- Motor friendly
- Latest IGBT technology
- Liquid cooling systems
Technical Data
Input voltage | 2 x 800V, 50Hz |
Propulsion output | 550kW |
Cooling | Liquid cooled |
Size | 1350 x 840 x 1900mm |
Weight | 849kg |
Mounting position | Machine room |
Connecting interface | CAN / MVB / Ethernet |
Auxiliary Converter for Electric Multiple Unit – KONTRAC PN 110 AC
The KONTRAC PN110AC is fed from a dedicated winding of the main transformer, it supplies stabilised voltages to electrical loads. This converter has two three-phase outputs and one DC output. Its input current is nearly sinusoidal and its fundamental harmonic is in phase with the input voltage.
Download KONTRAC PN110AC Datasheet
Features
- Modular design of power units
- High energy efficiency
- Machine room mounting
- Easy maintenance
- Latest IGBT technology
Technical Data
Input voltage | 340V, 50Hz |
AC outputs | 3 x 400V, 50 Hz, 2 x 60kVA |
DC output | 24VDC, 12kW |
Cooling | Forced air-cooling |
Size | 1250 x 820 x 2085mm |
Weight | 990kg |
Mounting position | Machine room |
Connecting interface | CAN / MVB / Ethernet |
For further information on KONČAR’s traction converters for trains please call us on 01444 243 452 or email: enquiries@gdrectifiers.co.uk.
