XF015179

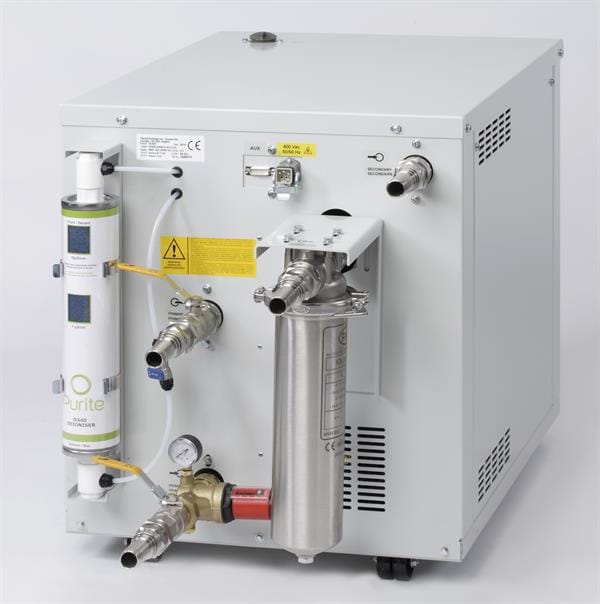

XF015179 0-75kW Floor Standing Water to Water Heat Exchanger

The XF015179 device range offers a large collection of floor standing water to water heat exchangers from 15kW, 25kW, 50kW and 75kW.

  • Designed for use in primary house water circuits
  • Provides cooling to applications for which the facilities water might not be suitable
  • Floor standing water to water heat exchanger

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The range of water-to-water heat exchangers are commonly used to address water quality concerns or to maintain a more stable pressure, flow or temperature.

Heat exchangers are also an effective way to protect sensitive equipment from contamination by bacteria or algae.
These systems are designed to be used for mounting a 19” rack system, provide easy installation and are ideal for space saving.

The XF heat exchangers sit between the application and the primary flow, modulating the flow rate to achieve temperature stability without the need for additional refrigerated coolers.

Typical Applications

  • Resistance Welding Machines
  • High Frequency Generators
  • Furnace Equipment
  • X-Ray Devices
  • Lasers
  • General Process Cooling

Refer to manufacturer’s datasheet for full technical information.

Manufacturer

Applications

, , , , ,

Compliance

UL-CSA Compliant

Noise Level

63 dB(A)

Toolless Access

No

Technology

Water-to-Water Heat exchanger

Temperature Range (Standard)

4°C to 70°C

Control Method

Modulating Valve

Temperature Stability (with constant load)

±1°C

Temperature Resolution

0.1°C

System volume (L)

2.3

Pump Type

5L/min Rotary vane (PD)

Pump Capability

6bar@5L/min

Pressure Control (settable pressure relief valve)

20-150psi, Internal, PRV

Standard fittings

1/2" BSPPF or Hexid Fluid, Water

Standard Chemical Compatibility

Propylene Glycol

(208-230Vac, 1/2, 50/60Hz) 9-spec

4.5A

Overcurrent Fault-cleared Restart Mode

Manual

Applied Thermal Control (ATC) and Thermal Exchange are part of the Scientific Digital Imaging Group of Companies that design, build and service process cooling and temperature control equipment for industrial, medical and scientific applications. Applied Thermal Control have ISO9001:2015 and ISO14001:2015 certifications, showcasing their dedication and commitment to quality and the environment.

Applied Thermal Control chillers and air blast coolers are well established in the scientific instrument support markets, semiconductor process, ophthalmic lens manufacturing equipment, machine tool and are the chillers of choice for commercial digital printing and laser lithography markets worldwide.

Applied Thermal Control

Applied Thermal Control design and manufacture process cooling and temperature control equipment for industrial, medical and scientific applications. Applied Thermal Control offer recirculation chillers from 500W-14kW and air blast coolers from 0-10kw and 20-80kw.

Learn more about Applied Thermal Control products by getting in touch with GD Rectifiers.
