Images are for reference only, see product specifications for full details

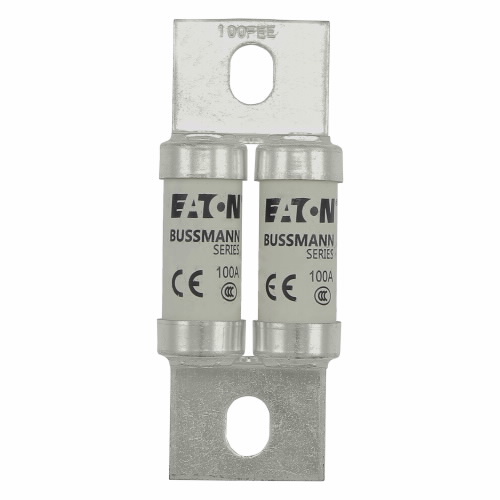

100FEE High Speed British Standard Fuse 690V, 100A
The 100FEE is a high speed British standard fuse designed and tested to BS88-4 and IEC 60269-4. It features excellent cycling capability and is suited to power converters, rectifiers and reduced voltage starters.
- Excellent cycling capability and DC performance
- Low arc voltage and low energy let-through (I2t)
- Low watts loss
- Ideal for DC drives
- Designed and tested to BS88 part 4
Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class. This helps ensure the correct replacement fuse is always installed and the voltage and interrupting ratings remain the same.
Certifications & Approvals
RoHS Compliant, UL Recognised, IEC Rated, CE Marked
Typical Applications
- DC common bus
- DC drives
- Power converters/rectifiers
- Reduced voltage starters
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | DC Common Bus, DC Drives, Power Converters/Rectifiers, Reduced Voltage Starters |
| Compliance | CE Marked, RoHS Compliant |
| Certifications | IEC Rated, UL Recognised |
| Standards | BS88-4, IEC 60269-4 |
| Rated Current (A) | 100A |
| Rated Voltage (V) | 690V |
| Rated Switching Capacity | 200kA |
| Type of Fuse Status Indicator | None |
| Fuse Category | Other |
| Voltage Type | AC/DC |
| Breaking Capacity | 200kA |
| Clearing (I2t) | 1600 A2s at 415V 2400 A2s at 660V |
| Product Type | British Standard Fuse, High Speed Fuse |
| Fuse Size/Group | BS88 |
| Insulated metal gripping lugs (IMGL) | No |
| Fuse Shape | Offset dual barrel bolted tags |
| Connection | Blade end x blade end |
| Mounting Method | Stud |
| Mounting Dimension | M8 |
| Packaging Type | Standard |
Eaton Bussmann is a world leading manufacturer of circuit protection solutions. Formerly known as Cooper Bussmann, Eaton’s Bussmann series manufacture a wide range of circuit protection fuses, microswitches and trip indicators. Eaton reflects a long tradition of creating solutions that enhance electrical safety, reliability, code compliance and efficient power distribution.
Eaton Bussmann specialises in a comprehensive range of fuses including low voltage, high speed, high voltage and semiconductor fuses designed to provide innovative circuit and power electronics protection, serving the commercial, data center, electrical vehicle, food, and beverage markets.
Eaton Bussmann
Eaton’s Bussmann division is formerly known as Cooper Bussmann. Today, Eaton is a leading manufacturer of circuit protection solutions, and are especially known for their famous range of fuses.
They manufacture a wide range of circuit protection and semiconductor fuses, microswitches and trip indicators.
