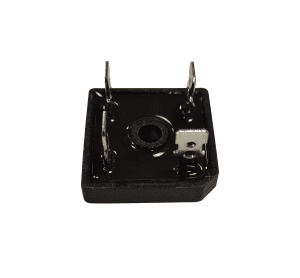

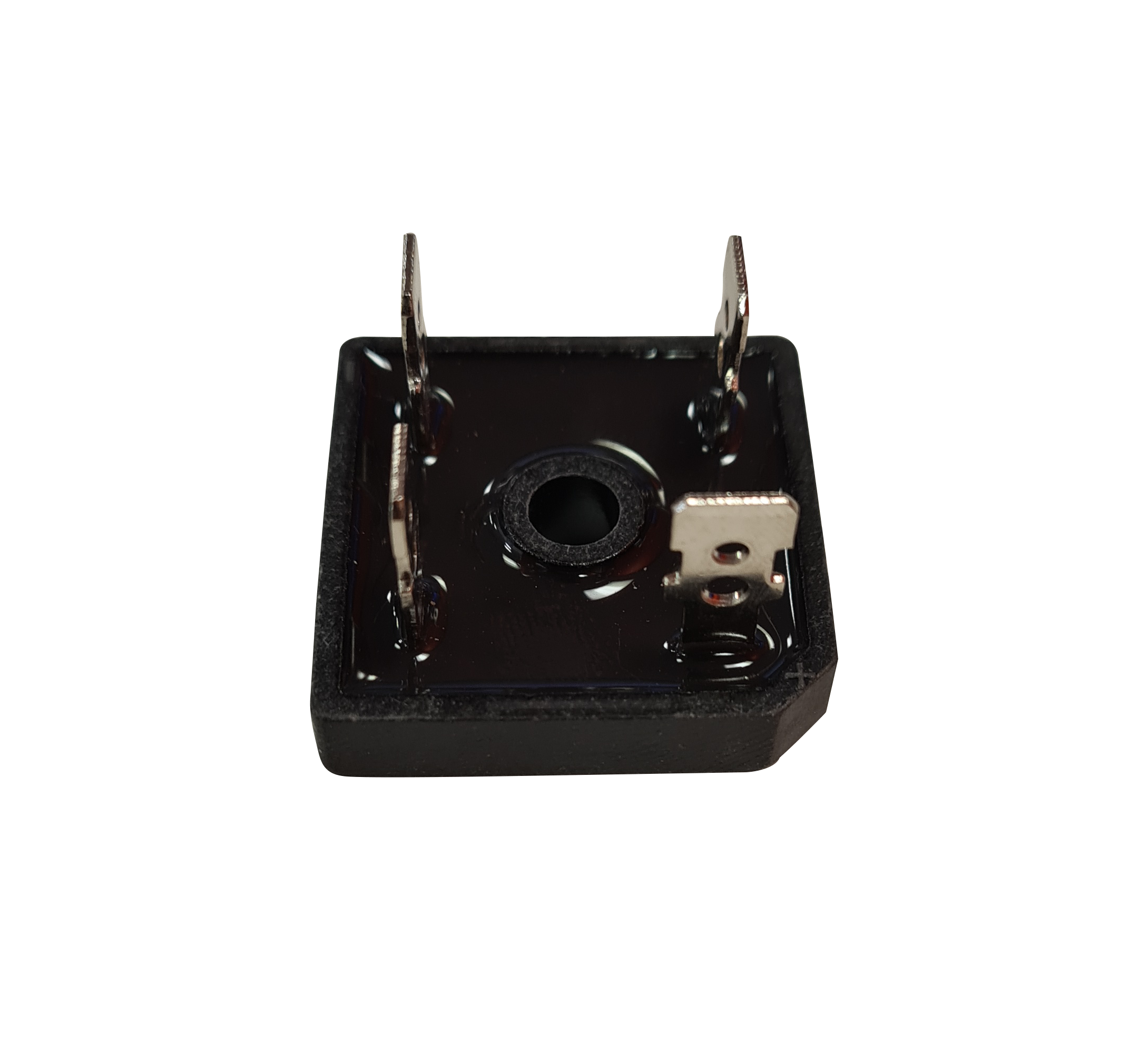

GD25-12 Silicon Bridge Rectifier 1200V, 25A
The GD25-12 silicon bridge rectifier converts an alternating current input into a direct current output. This device is designed for single phase rectification, has an average current of 25A and can be widely used for power supply.
- Low leakage current
- Low forward voltage drop
- Improved temperature and power cycling
- Easy to mount
- Space and weight savings
A bridge rectifier is a full-wave rectifier that uses four or more diodes in a bridge circuit configuration to convert alternating (AC) current to a direct (DC) current. Bridge rectifiers provide full-wave rectification from a two-wire AC input and offer weight and cost savings compared to a rectifier with a three-wire input.
Approvals
RoHS Compliant
Typical Applications
- Power supplies
- Supplies for DC power equipment
- Battery DC power supplies
- Field Supply for DC motors
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | Battery DC Power Supplies, Field supply for DC motors, Power Supplies, Supplies for DC Power Equipment |
| Voltage PIV | 1200V |
| Maximum Surge Forward Current (IFSM) | 300A |
| Average Current | 25A |
| Product Type | Bridge Rectifier |
| Compliance | RoHS Compliant |
With over 50 years of extensive experience across a large range of markets, GD Rectifiers design and manufacture standard and custom made heatsinks, selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.
GD Rectifiers’ engineers are experts in designing high quality and high reliability heatsinks and power assemblies for applications where optimised performance is required. Solid state semiconductor technology used in power assemblies provide customers with standard and custom design solutions for most industrial power applications.
The custom power specialist also manufactures a wide range of thermal management solutions, including axial fans, thermal trips and fan accessories. GD Rectifiers’ thermal management solutions improve reliability and prevent premature failure.
The company offer a wide range of high efficiency phase controlled thyristors, including replacements for obsolete thyristors, alongside circuit protection devices such as surge arresters and varistors for maximum security and protection.
