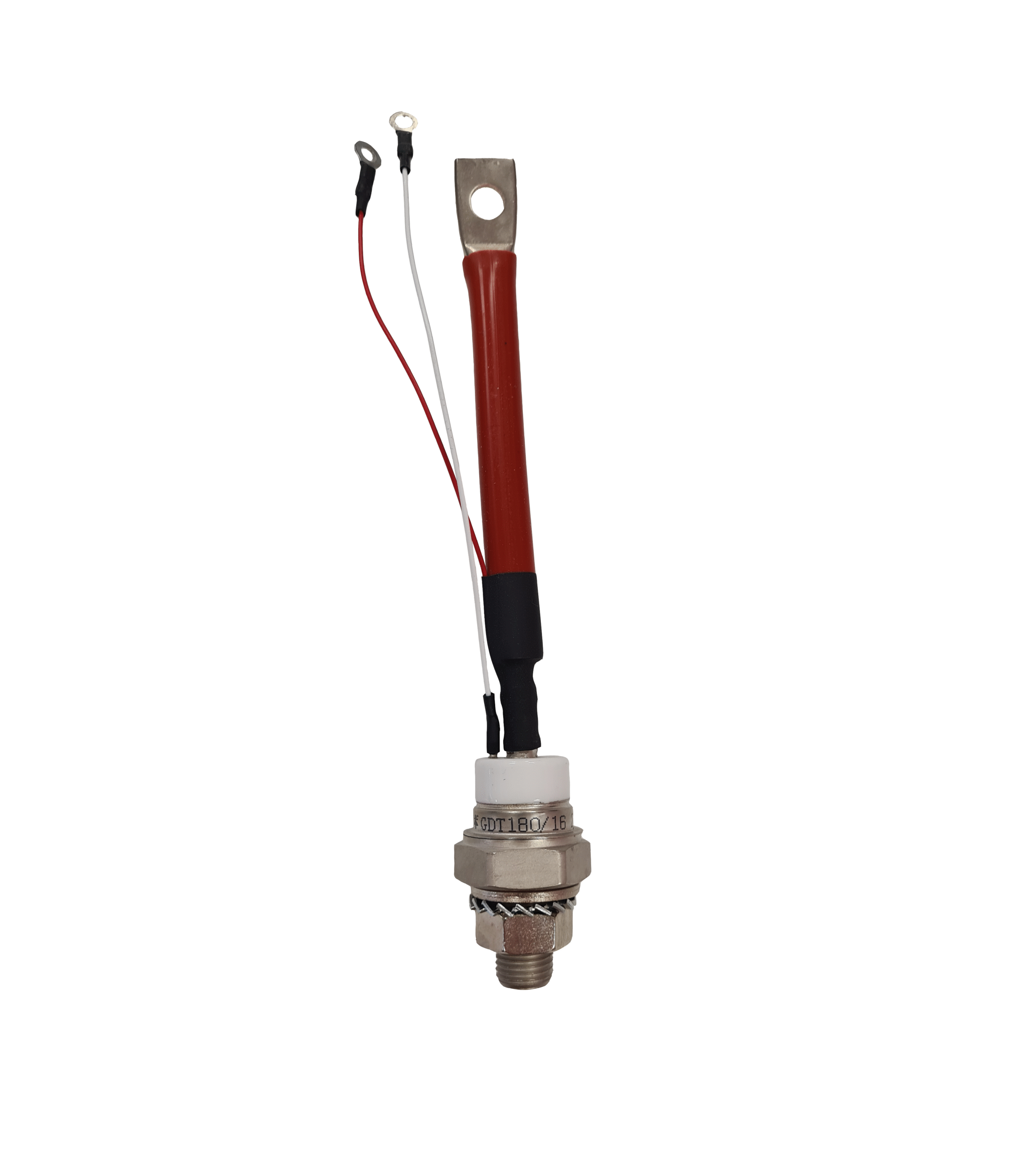

GDT180/16 Phase Control Thyristor 1600V, 110A
The GDT180/16 is a phase control stud type thyristor designed for DC motor controls, controlled DC power supplies and AC controllers.
- Hermetic metal case with ceramic insulator (glass-metal seal over 1200V)
- International standard package TO-209AC (TO-94)
- Compression Bonded Encapsulation for heavy duty operations such as severe thermal cycling
- Stud type phase control thyristor rated 1600V
- Improved temperature and power cycling
The GDT180/16 stud type thyristor is available with or without leads and sleeving. The nuts and washers are supplied loose.
Approvals
RoHS Compliant
Typical Applications
- DC motor controls
- Controlled DC power supplies
- AC controllers
Refer to manufacturer’s datasheet for full technical information.
Images are for reference only, see product specifications for full details.
| Manufacturer | |
|---|---|
| Applications | AC Controllers, Controlled DC Power Supplies, DC Motor Control |
| Maximum Repetitive Reverse Voltage (VRRM) | 1600V |
| Configuration | Single |
| Package/Case | TO-209AC (TO-94) |
| Value for Fusing (I2t) | 36.4 kA2s |
| Virtual Junction Temperature (TJ) | -40°C to +125°C |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 1700V |
| Thermal Resistance Junction to Case (RthJC) | 0.195 K/W |
| Thermal Resistance Junction to Heatsink (RthCH) | 0.08 K/W |
| Mounting Style | Stud Mount |
| Product Type | Stud Thyristor |
| Compliance | RoHS Compliant |
| Average Forward Current (ITAV) | 110A |
