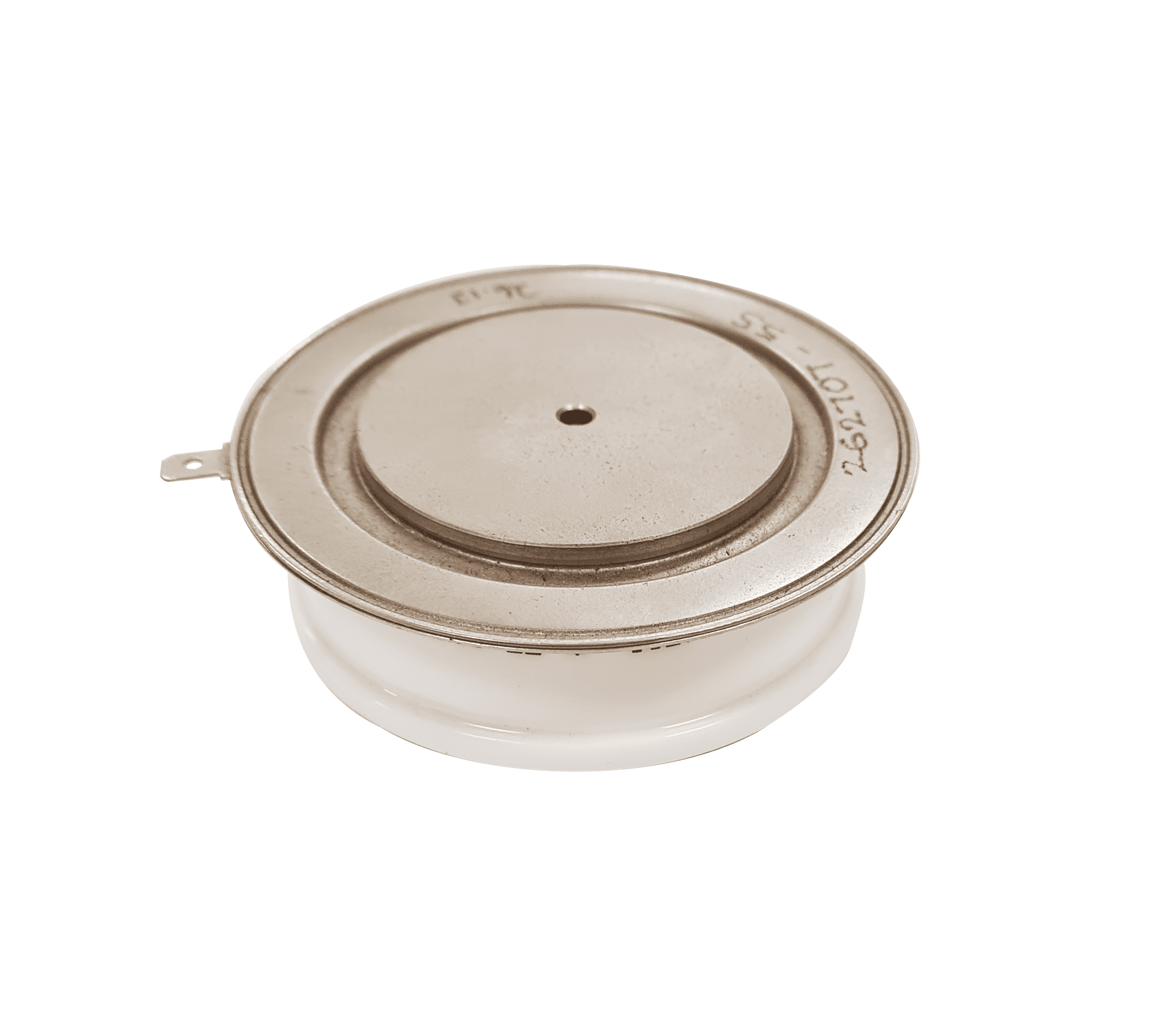

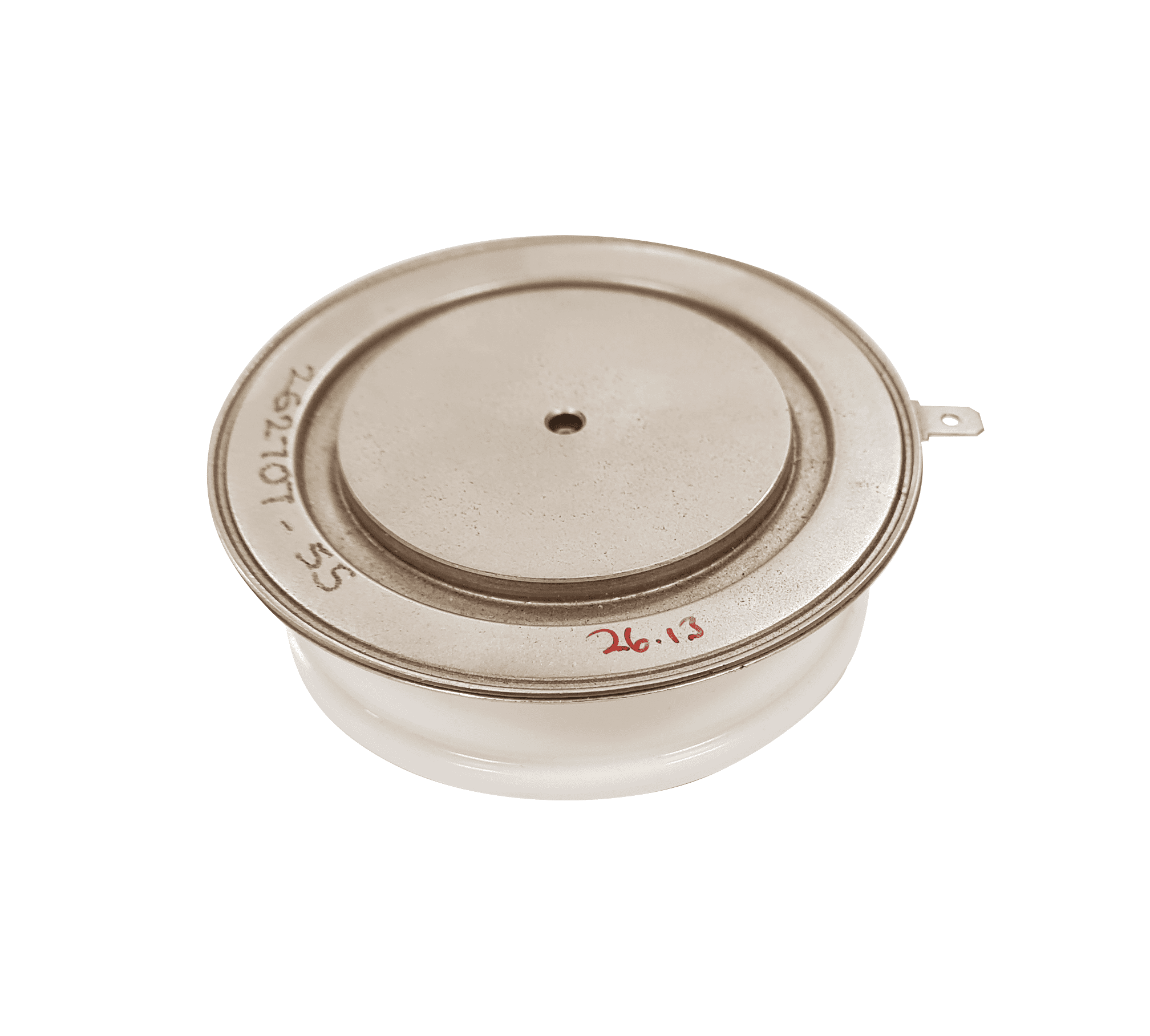

GDT1800/22 Phase Control Thyristor 1600V, 110A
The GDT1800/22 is a phase control capsule type thyristor designed for DC motor controls, controlled DC power supplies and AC controllers.
- Hermetic metal case
- International standard package
- Compression Bonded Encapsulation for heavy duty operations such as severe thermal cycling
- Capsule type phase control thyristor rated 1600V
- Improved temperature and power cycling
The GDT1800/22 stud type thyristor is available with or without leads and sleeving. The nuts and washers are supplied loose.
Approvals
RoHS Compliant
Typical Applications
- DC motor controls
- Controlled DC power supplies
- AC controllers
Refer to manufacturer’s datasheet for full technical information.
Images are for reference only, see product specifications for full details.
| Manufacturer | |
|---|---|
| Applications | AC Controllers, Controlled DC Power Supplies, DC Motor Control |
| Maximum Repetitive Reverse Voltage (VRRM) | 2200V |
| Configuration | Single |
| Value for Fusing (I2t) | 2.31 x 106 A2s |
| Operating Temperature Range (THS) | -40°C to +125°C |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 2300V |
| Thermal Resistance Junction to Heatsink (RthCH) Double side cooled/Single side cooled | 0.024 K/W, 0.048 K/W |
| Mounting Style | Surface Mount |
| Product Type | Capsule Thyristor |
| Compliance | RoHS Compliant |
| Average Forward Current (ITAV) | 1467A |
With over 50 years of extensive experience across a large range of markets, GD Rectifiers design and manufacture standard and custom made heatsinks, selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.
GD Rectifiers’ engineers are experts in designing high quality and high reliability heatsinks and power assemblies for applications where optimised performance is required. Solid state semiconductor technology used in power assemblies provide customers with standard and custom design solutions for most industrial power applications.
The custom power specialist also manufactures a wide range of thermal management solutions, including axial fans, thermal trips and fan accessories. GD Rectifiers’ thermal management solutions improve reliability and prevent premature failure.
The company offer a wide range of high efficiency phase controlled thyristors, including replacements for obsolete thyristors, alongside circuit protection devices such as surge arresters and varistors for maximum security and protection.
