Images are for reference only, see product specifications for full details

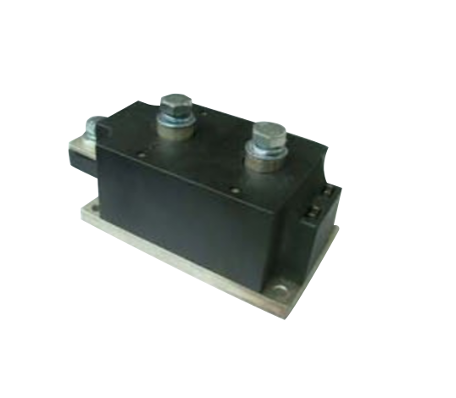

MTC500-18 Thyristor Module 1800V, 500A
The MTC500-18 has an isolated mounting base of 3000V and offers space and weight savings.
Approvals
RoHS Compliant
Typical Applications
- AC/DC motor drives
- DC supply for PWM inverters
- Various rectifiers
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | AC/DC Motor Drives, DC Supply for PWM Inverter, Various Rectifiers |
| Maximum Repetitive Reverse Voltage (VRRM) | 1800V |
| Value for Fusing (I2t) | 45mA |
| Threshold Voltage (VT0) | 0.85V |
| Slope Resistance (rT) | 0.39mΩ |
| Thermal Resistance Junction to Case (RthJC) Single side cooled | 0.060°C/W |
| Thermal Resistance Junction to Heatsink (RthCH) Single side cooled | 0.024°C/W |
| Maximum Forward Surge Current (ITSM), 125°C 50Hz, 60Hz | 14.5kA |
| Storage Temperature (Tstg) | -40°C to +125°C |
| Mounting Style | Screw Mount |
| Type | Phase Leg |
| Product Type | Thyristor Module |
| Compliance | RoHS Compliant |
With over 50 years of extensive experience across a large range of markets, GD Rectifiers design and manufacture standard and custom made heatsinks, selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.
GD Rectifiers’ engineers are experts in designing high quality and high reliability heatsinks and power assemblies for applications where optimised performance is required. Solid state semiconductor technology used in power assemblies provide customers with standard and custom design solutions for most industrial power applications.
The custom power specialist also manufactures a wide range of thermal management solutions, including axial fans, thermal trips and fan accessories. GD Rectifiers’ thermal management solutions improve reliability and prevent premature failure.
The company offer a wide range of high efficiency phase controlled thyristors, including replacements for obsolete thyristors, alongside circuit protection devices such as surge arresters and varistors for maximum security and protection.
GD Rectifiers
GD Rectifiers design and manufacture selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.
We are one of the UK’s leading distributors of power electronic components and hold extensive stock of diodes, thyristors, IGBTs and MOSFETs from the world’s leading semiconductor manufacturers.
Learn more about our products by getting in touch with us.
Datasheet
GD Rectifiers MTC500 Datasheet.pdf
Line Card
GD Rectifiers Line Card 2023
Catalogue
GD Rectifiers Product Catalogue
