HDE 35/07 HT

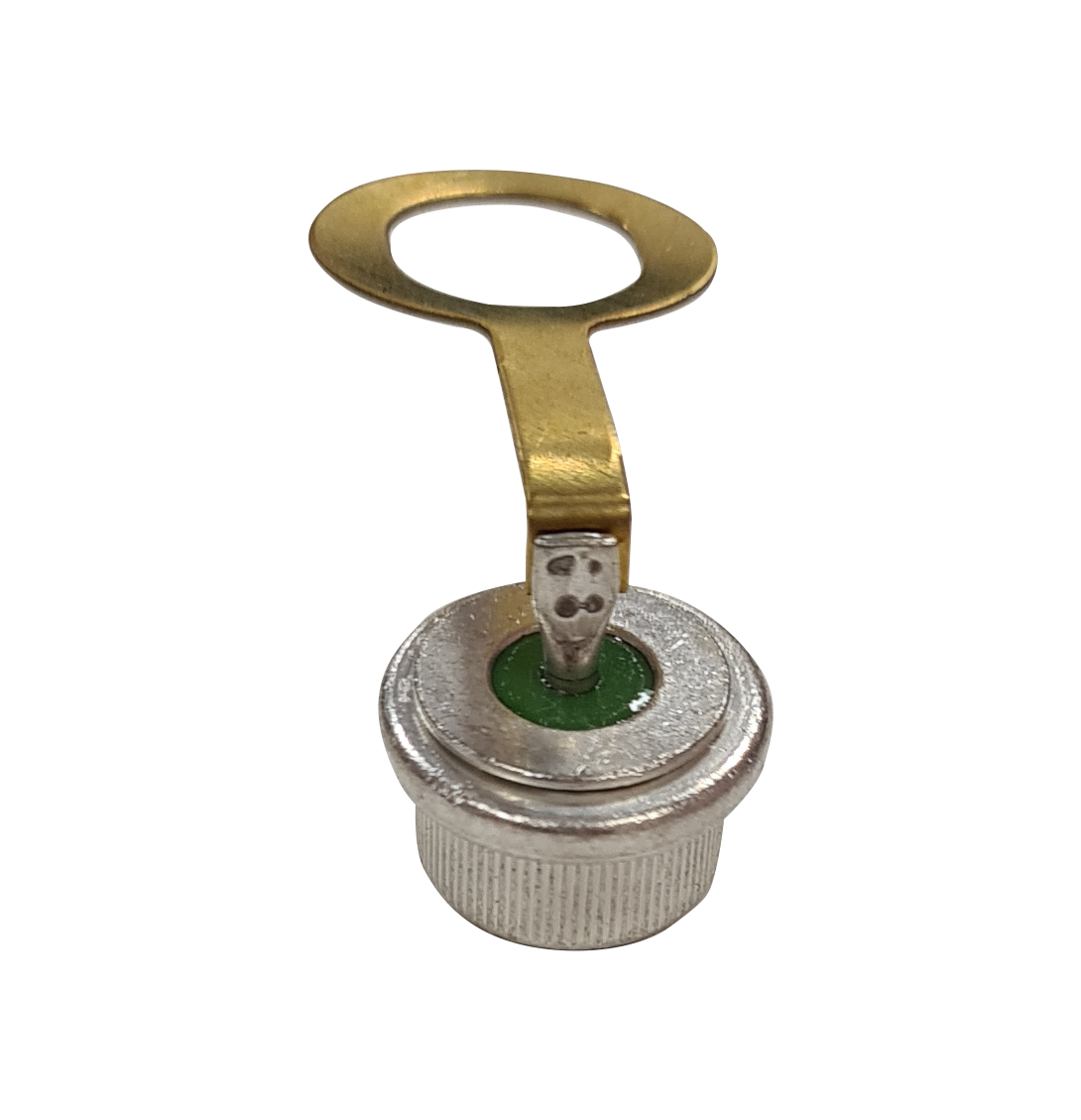

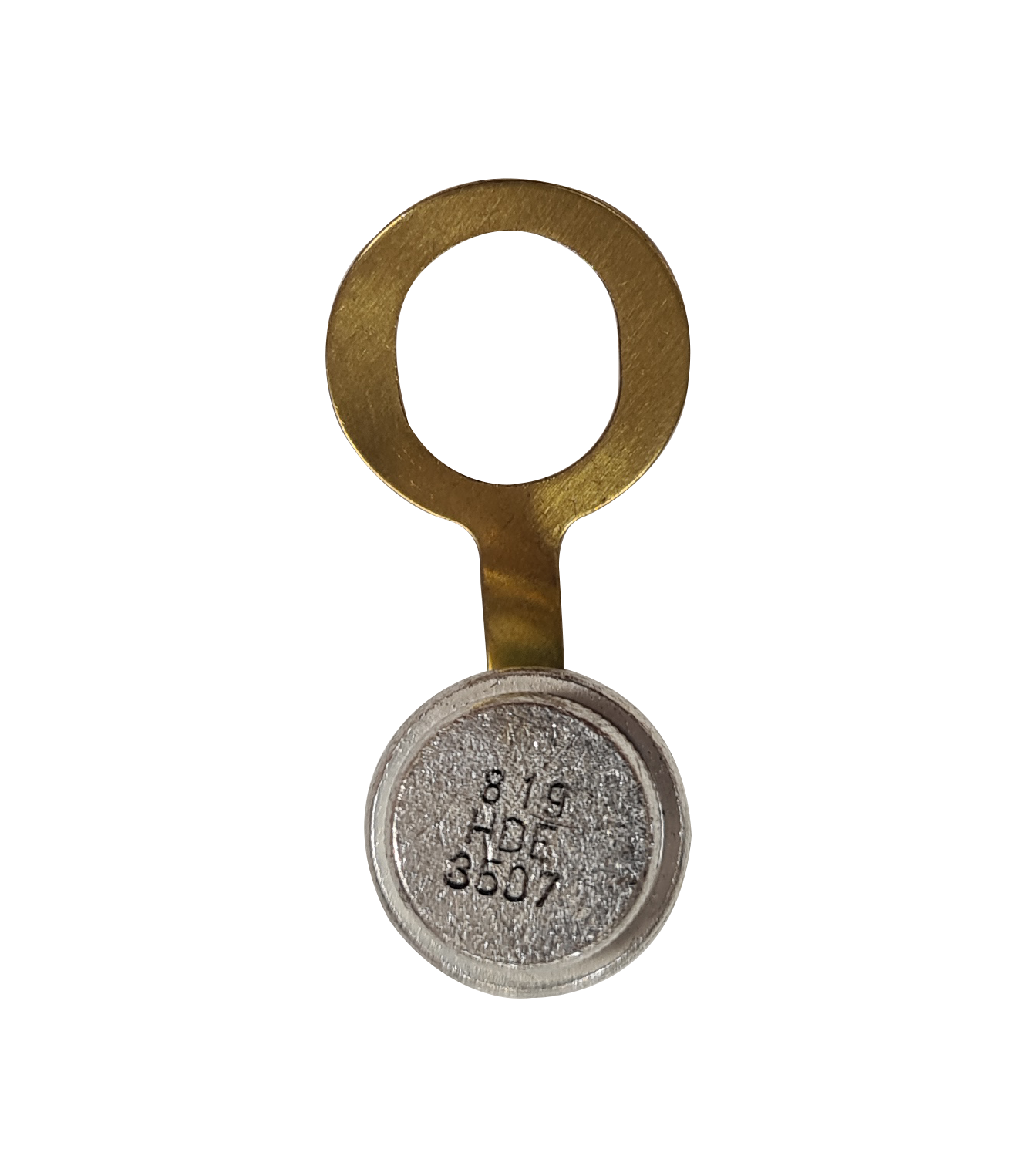

HDE 35/07 Press Fit Diode 700V, 35A

This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / enquiries@gdrectifiers.co.uk

The HDE 35/07 press fit diodes are used on low cost, low voltage rectifiers to improve the natural cooling of power assemblies.

  • Low voltage, low cost
  • Compact design
  • Press fit diodes from 200V – 1200V
  • Ready to use
  • Custom solutions available

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

This device offers a forced air cooling solution, improved performance and has a voltage rating of 700V.

Typical Applications

  • High power rectifiers
  • Battery chargers
  • Power supplies
  • Welders

Refer to manufacturer’s datasheet for full technical information.

Manufacturer

Applications

, , ,

Maximum Repetitive Reverse Voltage (VRRM)

700V

RMS Forward Current (IFRMS)

55A

Maximum Surge Forward Current (IFSM)

300A

Thermal Stress (i2dt)

450 A2s

Reverse Current (IR)

3mA

Maximum Virtual Junction Temperature (TVJM)

175°C

Product Type

Press Fit Diode

Datasheet

Datasheet

Hermann HDE 35-07 Datasheet.pdf
