DSEP2X61-03A In stock

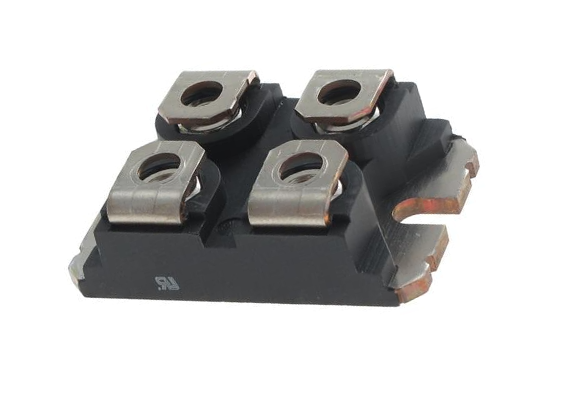

DSEP2X61-03A Fast Recovery Diode 300V, x2 60A

The DSEP2X61-03A is a high performance Fast Recovery Diode (FRD) featuring low loss and soft recovery behaviour with parallel legs.

  • Planar passivated chips
  • Very low leakage current
  • Very short recovery time
  • Soft reverse recovery for low EMI/RFI
  • Isolation voltage 3000V
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

The FRD offers advanced power cycling, very low leakage current and a very short recovery time. This device is avalanche voltage rated for a reliable operation and is used in uninterruptible power supplies (UPS), freewheeling diodes and rectifiers in switch mode power supplies (SMPS).

Approvals
RoHS Compliant, Epoxy meets UL 94V-0

Typical Applications

  • Antiparallel diode for high frequency switching devices
  • Antisaturation diode
  • Snubber diode
  • Free wheeling diode
  • Rectifiers in switch mode power supplies (SMPS)
  • Uninterruptible power supplies (UPS)

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantREACH Compliant

Manufacturer

Applications

, , , , ,

Maximum Repetitive Reverse Voltage (VRRM)

300V

Maximum Peak Surge Current (IFSM)

600A

Reverse Recovery Time (trr)

30ns

Maximum Non-Repetitive Reverse Blocking Diode (VRSM)

300V

RMS Current (IRMS)

100A

Reverse Current, Drain Current (IR)

650μA

Forward Voltage Drop (VF)

1.51V

Threshold Voltage (VF0)

0.79V

Slope Resistance (RF)

5.3mΩ

Thermal Resistance Junction to Case (RthJC)

0.85 K/W

Thermal Resistance Case to Heatsink (RthCH)

0.1 K/W

Package/Case

SOT-227B

Product Type

FRED Fast Recovery Diode Fast Recovery Epitaxial Diode

Compliance

RoHS Compliant, UL Recognised

Average Forward Current (IFAV)

2x 60A

IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.

IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.

IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.

The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.

IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.

IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.

IXYS: A Littelfuse Technology

IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS products by getting in touch with GD Rectifiers.
