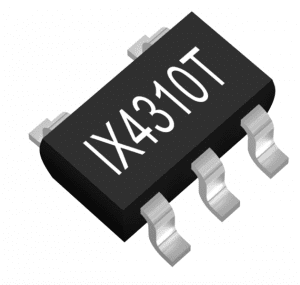

IX4310TTR

IX4310TTR Low-side MOSFET Driver 24V, 2A

The IX4310T is a 2A low side gate driver. The output is capable of sourcing and sinking 2A of peak current, and has a maximum voltage rating of 24V.

  • Output capable of sourcing and sinking 2A
  • CMOS and TTL compatible Inputs
  • 5V to 24V supply voltage range
  • Fast propagation delays (13ns typical)
  • Fast rise and fall times (7ns typical)

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The input is TTL and CMOS logic compatible.
The IX4310T is available in a 5-pin SOT23 package.

Approvals
RoHS Compliant

Typical Applications

  • Switch-mode power supplies
  • DC-DC converters
  • Motor controllers
  • Power inverters

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantREACH Compliant

Manufacturer

Applications

, , ,

Supply Voltage Primary (VCC)

24V

Input Voltage (VIN)

24V

Output Current (IOUT)

±2

Package/Case

SOT-23-5

ESD Rating (Human Body Model)

2000V

Junction Temperature (TJ)

-55 to +150°C

Storage Temperature (Tstg)

-65 to +150°C

Mounting Style

SMD/SMT

Product Type

MOSFET Driver

Output Average Current (IoutPEAK)

2A

Today, IXYS: A Littelfuse Technology solutions include high voltage integrated circuits (ICs) and optically isolated solid state relays (OptoMOS®) for the communication, industrial, power, and consumer markets, plus solid state relays (SSRs) for the telecommunications, security, utility metering, and industrial control industries.

The company was previously owned by IXYS Corporation, who previously acquired Clare Inc in 2002, forming IXYS Clare which was later rebranded to IXYS Integrated Circuits Division (IXYS ICD). IXYS ICD used to be a subsidary of IXYS Corporation before becoming part of Littelfuse in 2018.

IXYS Integrated Circuits / IXYS: a Littelfuse Technology has expanded it’s product offering over the years by launching new power solid state relays, high voltage analog switches and electroluminescent display driver products for the communication, power and medical industries.

IXYS Integrated Circuits Division

Littelfuse acquired IXYS Corporation in January 2018. All power semiconductor products now belong to the IXYS: A Littelfuse Technology brand.

IXYS: A Littelfuse Technology solutions include high voltage integrated circuits (ICs) and optically isolated solid state relays (OptoMOS®) for the communication, industrial, power and consumer markets, plus solid state relays (SSRs) for the telecommunications, security, utility metering, and industrial control industries. IXYS Integrated Circuits Division was formerly known as Clare Inc and IXYS Clare.

Learn more about IXYS Integrated Circuits Division products by getting in touch with GD Rectifiers.
