Images are for reference only, see product specifications for full details

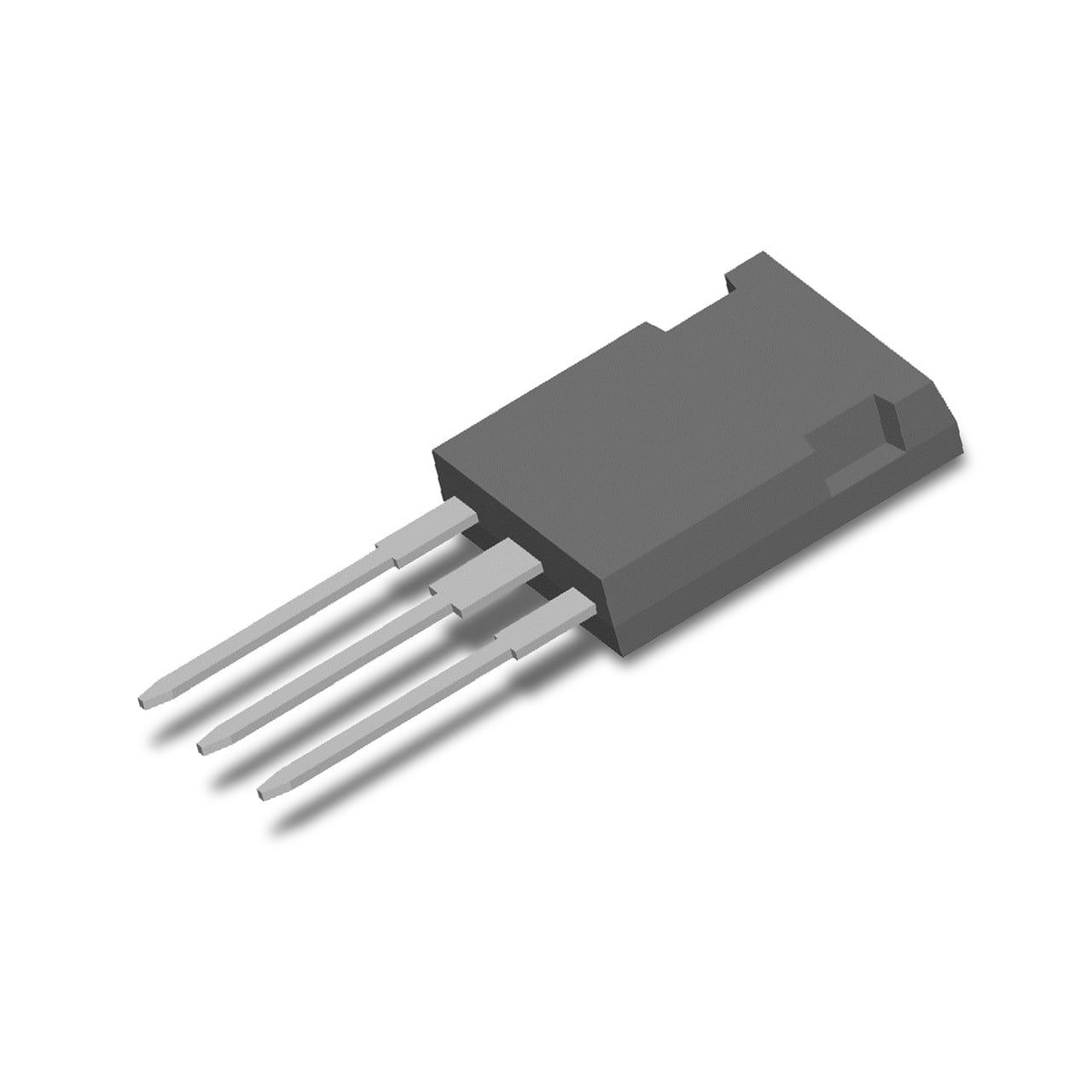

IXFR64N60P Polar™ HiPerFET™ Power MOSFET 600V, 65A
The device combines the strengths of the Polar product family characteristics with a faster diode, providing a reduced reverse recovery time (trr) to make it suitable for phase-shift bridges, motor control and uninterruptible power supply applications.
This family of HiPerFETs provides lowest RDS(on), low RthJC, low Qg, and enhanced DV/DT capability.
Approvals
RoHS Compliant
UL Recognised
Typical Applications
- DC-DC converters
- Battery chargers
- Switch-mode and resonant-mode power supplies
- AC motor drives
- High speed power switching applications
Refer to manufacturer’s datasheet for full technical information.
Manufacturer | |
---|---|
Applications | AC/DC Motor Drives, Battery Chargers, DC-DC Converters, High speed power switching applications, Switch-mode and resonant-mode power supplies, Uninterruptible Power Supplies (UPS) |
Drain Source Breakdown Voltage (VDSS) | 600V |
Continuous Drain Current (ID25) | 36A |
Configuration | Single |
Package/Case | TO-247-3 |
Mounting Style | Through Hole |
Product Type | Power MOSFET |
Operating Junction Temperature (TJ) | -55°C to +150°C |
Reverse Recovery Time (trr) | 200ns |
Static Drain Source on Resistance RDS(on) | 105mΩ |
Maximum Pulsed Drain Current (IDM) | 150A |
Drain Gate Voltage (VDGR) | 600V |
Gate Source Voltage (VGS) Continuous | ±30V |
Maximum Transient Gate Source Voltage (VGSM) | ±40V |
Turn-on Delay Time TD (on) | 28ns |
Turn-off Delay Time TD (off) | 79ns |
Isolated Base | Yes |
Compliance | RoHS Compliant, UL Recognised |
IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.
IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.
IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.
The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.
IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.
IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.
IXYS: A Littelfuse Technology
IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.
Learn more about IXYS products by getting in touch with GD Rectifiers.
Datasheet
littelfuse_discrete_mosfets_n-channel_hiperfets_ixfr64n60p_datasheet.pdf.pdf
Product Catalogues
IXYS IGBTs Product Catalogue
IXYS Product Catalogue 2022-2023
IXYS Selector Guide 2015
