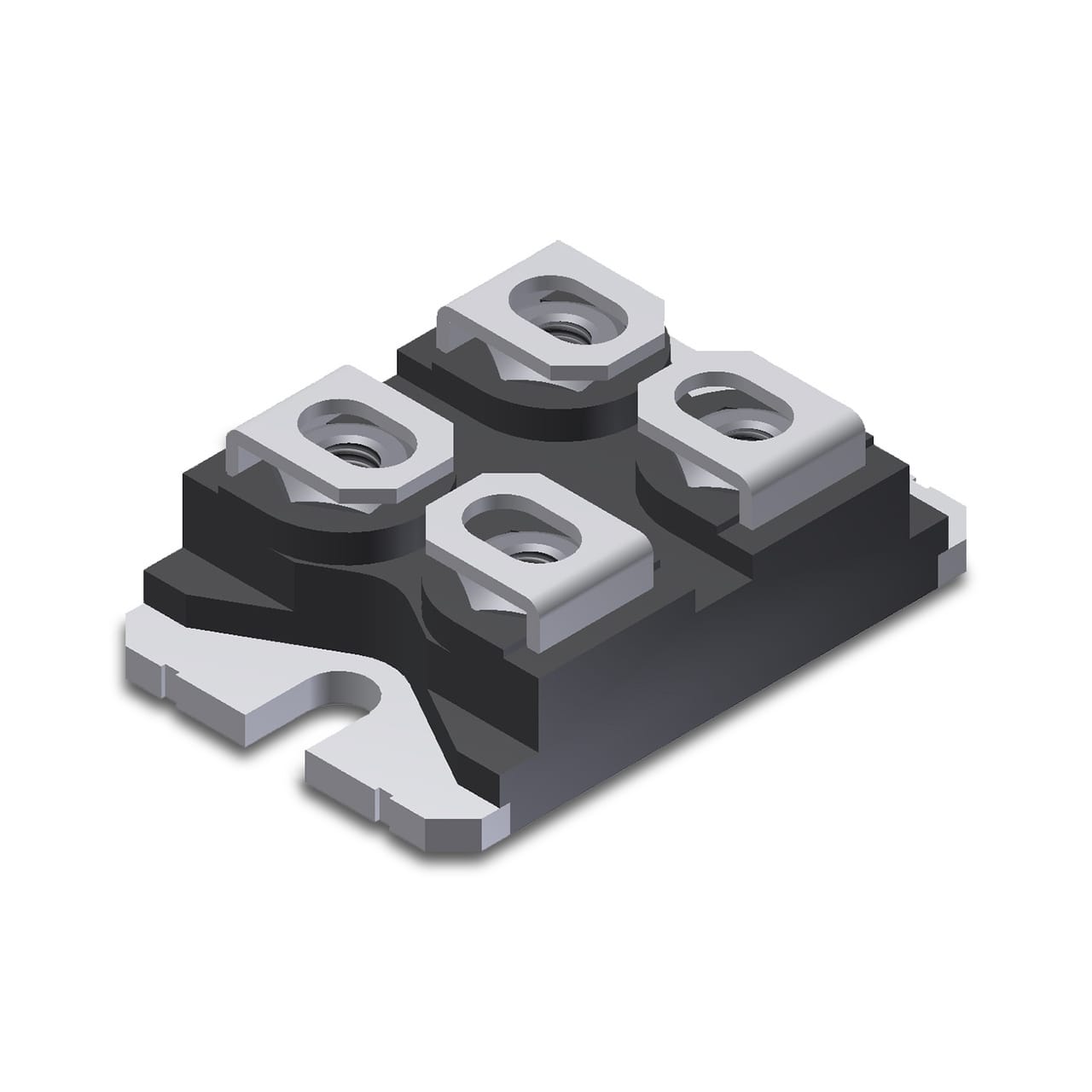

IXTN79N20 Linear Power MOSFET 200V, 85A
This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / enquiries@gdrectifiers.co.uk
The IXTN79N20 Linear Power MOSFETs are required to ensure substantially high thermal and electrical stresses due to the simulaneous occurence of the high drain voltages and currents; these extreme stresses can cause typical devices to fail. The Linear Power MOSFETs have been designed to address these devie failures providing a larger operating window.
Approvals
RoHS Compliant
Typical Applications
- DC-DC converters
- Current regulators
- Fan controllers
- Linear amplifiers
- Programmable loads
- Solid-state circuit breakers
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | Current Regulators, DC-DC Converters, Fan Controllers, Linear Amplifiers, Programmable Loads, Solid-state circuit breakers |
| Drain Source Breakdown Voltage (VDSS) | 200V |
| Continuous Drain Current (ID25) | 85A |
| Package/Case | SOT-227-4 |
| Mounting Style | Chassis Mount |
| Product Type | Power MOSFET |
| Operating Junction Temperature (TJ) | -55°C to +150°C |
| Reverse Recovery Time (trr) | 85ns |
| Static Drain Source on Resistance RDS(on) | 25mΩ |
| Turn-on Delay Time TD (on) | 36ns |
| Turn-off Delay Time TD (off) | 110ns |
| Isolated Base | Yes |
| Compliance | RoHS Compliant |
IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.
IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.
IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.
The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.
IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.
IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.
IXYS: A Littelfuse Technology
IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.
Learn more about IXYS products by getting in touch with GD Rectifiers.
