IXZR08N120A In stock

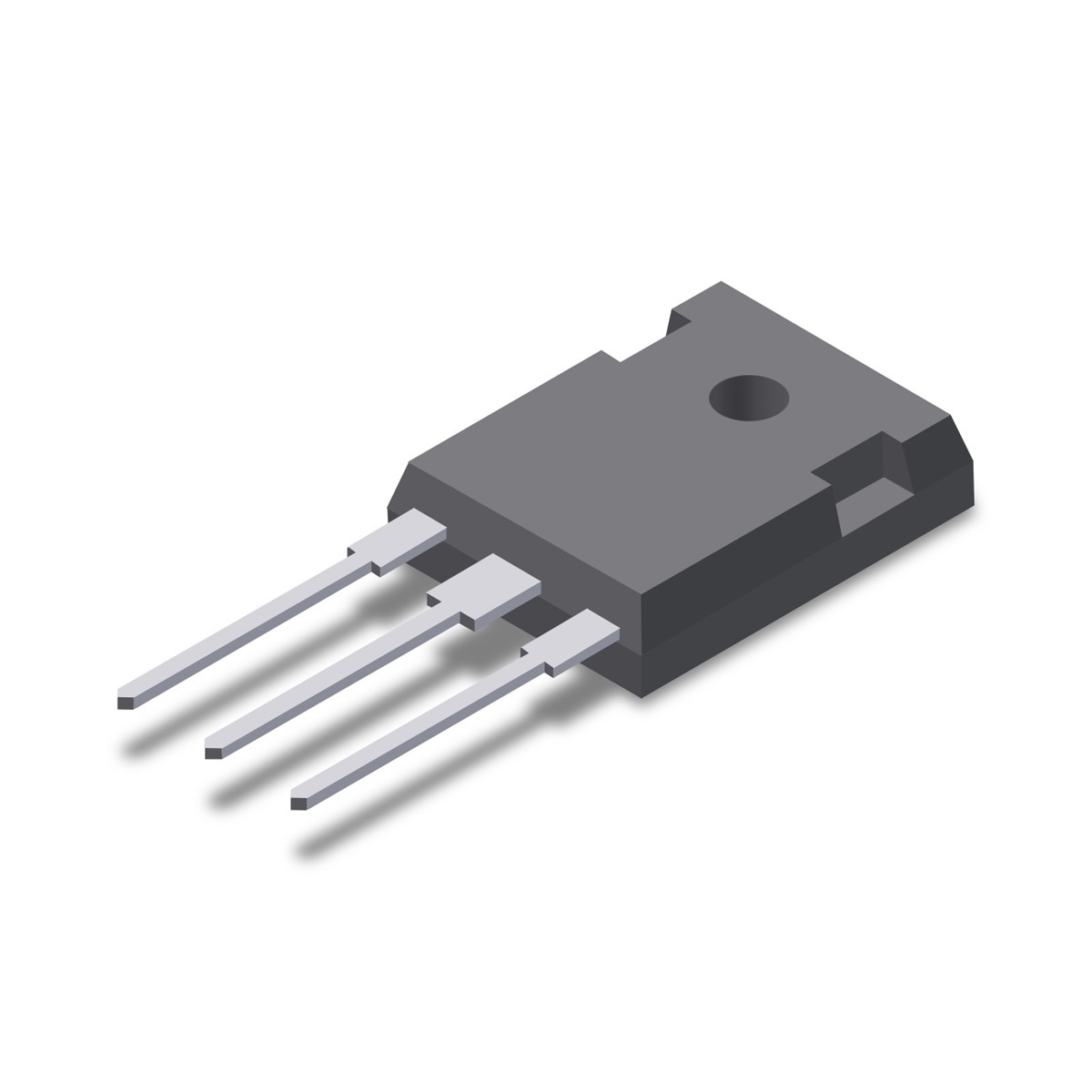

IXZR08N120A RF Power MOSFET 1200V, 8A

This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / enquiries@gdrectifiers.co.uk

The IXZR08N120A RF Switch Mode Power MOSFET is designed for RF applications, linear applications and high-power, high-frequency, and high-speed switching applications.

  • Isolated substrate
  • IXYS advanced Z-MOS process
  • Low gate charge and capacitances
  • Very low insertion inductance
  • Common source RF package
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

This device offers easy mounting with no insulators required.

Approvals
RoHS Compliant
UL Recognised

Typical Applications

  • Laser driver
  • Induction heating
  • Switch mode power supplies
  • Switching industrial applications

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL Recognised

Manufacturer

Applications

, , ,

Drain Source Breakdown Voltage (VDSS)

1200V

Continuous Drain Current (ID25)

8A

Configuration

Single

Package/Case

ISOPLUS-247

Mounting Style

Through Hole

Product Type

RF Power MOSFET

Operating Junction Temperature (TJ)

-55°C to +175°C

Reverse Recovery Time (trr)

200ns

Static Drain Source on Resistance RDS(on)

1.4mΩ

Maximum Pulsed Drain Current (IDM)

40A

Drain Gate Voltage (VDGR)

1200V

Gate Source Voltage (VGS) Continuous

±20V

Maximum Transient Gate Source Voltage (VGSM)

±30V

Repetitive Avalanche Current (IAR)

8A

Turn-on Delay Time TD (on)

4ns

Turn-off Delay Time TD (off)

4ns

Isolated Base

Yes

Compliance

RoHS Compliant, UL Recognised

IXYS RF manufacture an innovative range of Radio Frequency (RF) and Microwave Discrete Semiconductors, including: High Speed GaAs Schottky Diodes, MOSFET Driver ICs, Wireless, Microwave and MMIC Amplifiers and Hybrid Modules.

The IXYS RF range is manufactured in Fort Collins, Colorado and is used throughout high power RF industrial, medical, military, aerospace and telecommunications applications. GD Rectifiers is the official IXYS RF Distributor for the UK & Europe. They work directly with IXYS globally to secure the right product, at the right price at the right time for their customers.

The IXYS RF range has now been discontinued but products are still available, contact us for product availability.

IXYS RF

IXYS is a world leading manufacturer of power semiconductors. Their range of products includes IGBTs, MOSFETs, thyristors and diodes. IXYS RF power modules combine state-of-the-art CMOS gate driver ICs and power RF MOSFETs in single devices to enable more compact and efficient designs along with a reduced parts count. The modules are packaged in IXYS RF’s low-inductance RF package incorporating layout techniques to minimise stray lead inductances for optimum switching performance in a surface-mountable device.

GD Rectifiers is the official distributor for IXYS RF in the UK and Europe.

Learn more about IXYS RF products by getting in touch with GD Rectifiers.

Product Overview

Product Overview

IXYS RF Product Overview

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Download Datasheet
  • Parts List
  • Compare

IXFK48N50Q Q-Class HiPerFET™ Power MOSFET 500V, 48A

IXFK48N50Q Q-Class HiPerFET™ Power MOSFET 200V, 58A

  • Download Datasheet
  • Parts List
  • Compare

IXFN210N20P Polar™ HiPerFET™ Power MOSFET 200V, 188A

IXFN210N20P Polar™ HiPerFET™ Power MOSFET 200V, 188A

  • Download Datasheet
  • Parts List
  • Compare

IXFN120N20 HiPerFET™ Power MOSFET 200V, 120A

IXFN120N20 HiPerFET™ Power MOSFET 200V, 120A

  • Download Datasheet
  • Parts List
  • Compare

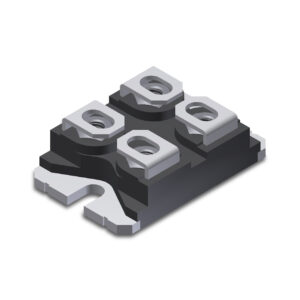

IXFN140N20P PolarHT™ HiPerFET™ Power MOSFET 200V, 115A
