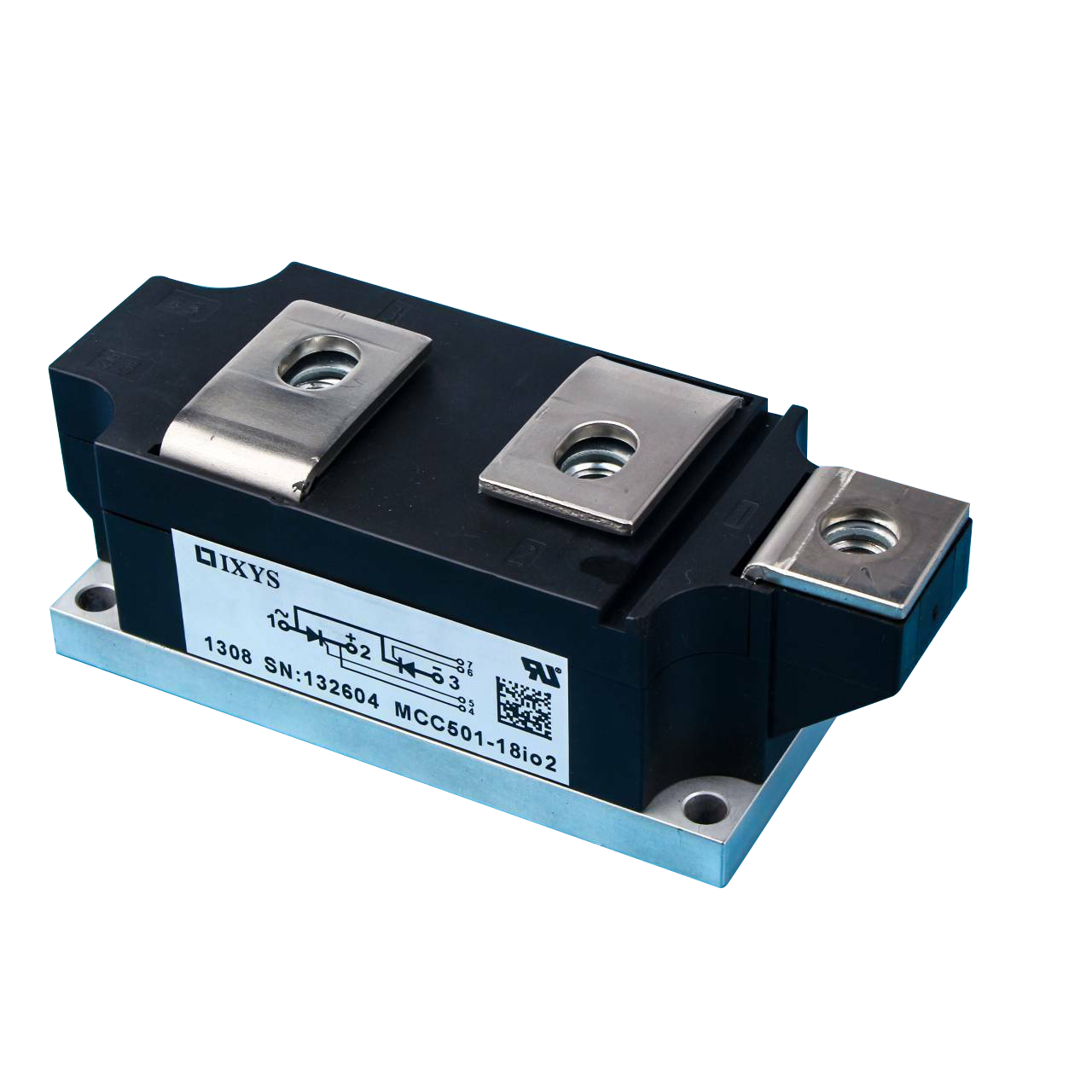

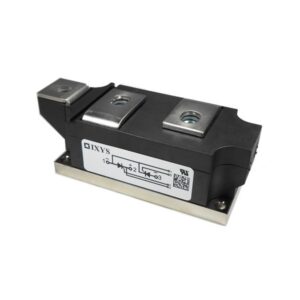

MCC501-18IO2 Thyristor/Diode Module 1800V, 503A
This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / [email protected]
The MCC501-18IO2 thyristor diode module offers full pressure contact construction for maximum reliability and performance at rated current.
- Thyristor for line frequency
- Direct copper bonded AI2O3-ceramic base plate
- Planar passivated chip
- Soldering pins for PCB mounting
- Advanced power cycling
This range is available in 9 standard configurations and are available as a dual thyristor, dual diode or thyristor/diode module option. Single diode/single thyristor options are also available.
The MCC500-18IO1 thyristor diode module is now obsolete and is not recommended for new designs.
Approvals
RoHS Compliant, UL Recognised
Typical Applications
- Softstarter AC motor control
- Power converters
- AC power control
- Lighting and temperature control
- DC motor control
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | AC Power Control, DC Motor Control, Lighting and Temperature Control, Power Converters, Softstart AC motor control |
| Maximum Repetitive Reverse Voltage (VRRM) | 1800V |
| Average Forward Current (ITAV) | 503A |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 1900V |
| RMS Forward Current IT(RMS) | 1195A |
| Value for Fusing (I2t) | 1.05 x 106 A2s |
| DC On-State Current IT(d.c.) | 985A |
| Threshold Voltage (VT0) | 0.85V |
| Slope Resistance (rT) | 0.30mΩ |
| Thermal Resistance Junction to Case (RthJC) Single Thyristor/Whole Module | 0.062 K/W / 0.031 K/W |
| Thermal Resistance Junction to Heatsink (RthCH) Single Thyristor/Whole Module | 0.02 K/W / 0.01 K/W |
| Maximum Forward Surge Current (ITSM) | 14.5kA |
| Turn-off Time (Tq) | 200μs |
| Operating Temperature (Top) | -40°C to +125°C |
| Package/Case | WC-500 |
| Mounting Style | Screw Mount |
| Type | SCR Modules |
| Product Type | Thyristor/Diode Module |
| Compliance | RoHS Compliant, UL Recognised |
| Product Status | Obsolete |
