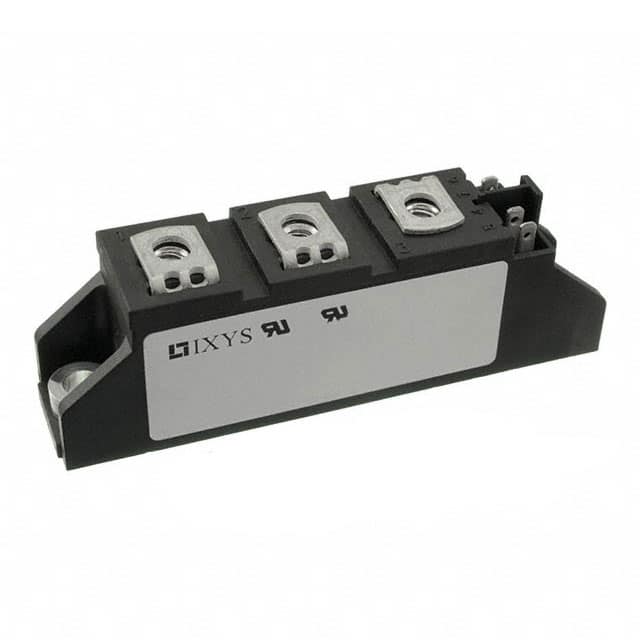

MCC56-18IO8B Dual Thyristor Module 2x1800V, 60A
The MCC56-18IO8B dual thyristor module has screw terminals, offers space and weight savings and are designed to meet the general requirements of power control applications by providing high current handling capabilities.
- Thyristor for line frequency
- Direct copper bonded AI2O3-ceramic base plate
- Planar passivated chip
- Soldering pins for PCB mounting
- Advanced power cycling
The MCC56-18IO8B dual thyristor module simplifies the conventional multilayer module construction by the DCB (Direct Copper Bonding) technique.
Approvals
RoHS Compliant, UL Recognised
Typical Applications
- Softstart AC motor control
- Power converters
- AC power control
- Lighting and temperature control
- DC motor control
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | AC Power Control, DC Motor Control, Lighting and Temperature Control, Power Converters, Softstart AC motor control |
| Maximum Repetitive Reverse Voltage (VRRM) | 2x 1800V |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 1900V |
| Value for Fusing (I2t) | 11.3 kA2s |
| Forward Voltage Drop (VT) | 1.24V |
| Reverse Current, Drain Current (IR/D) | 200μA |
| Threshold Voltage (VT0) | 0.85V |
| Slope Resistance (rT) | 3.7mΩ |
| Thermal Resistance Junction to Case (RthJC) | 0.45 K/W |
| Thermal Resistance Junction to Heatsink (RthCH) | 0.2 K/W |
| Total Power Dissipation (Ptot) | 222W |
| Maximum Forward Surge Current (ITSM), 125°C 50Hz, 60Hz | 1.28kA, 1.38kA |
| Turn-off Time (Tq) | 150μs |
| Operating Temperature (Top) | -40°C to +100°C |
| Package/Case | TO-240 AA |
| Mounting Style | Screw Mount |
| Type | Phase Leg |
| Product Type | Thyristor Module |
| Compliance | RoHS Compliant, UL Recognised |
