Images are for reference only, see product specifications for full details

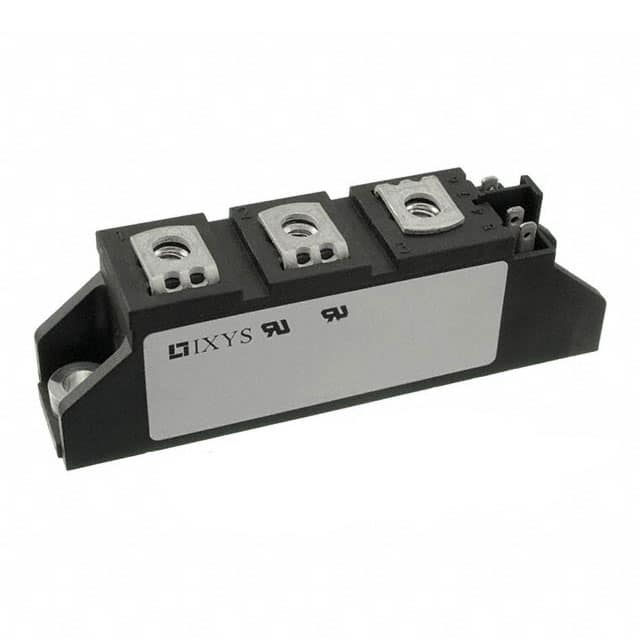

MCC95-18IO1B Dual Thyristor Module 2x1800V, 116A
The MCC95-18IO1B dual thyristor module has screw terminals, offers space and weight savings and are designed to meet the general requirements of power control applications by providing high current handling capabilities.
- Thyristor for line frequency
- Direct copper bonded AI2O3-ceramic base plate
- Planar passivated chips
- Isolation voltage 4800V
- Advanced power cycling
The MCC95-18IO1B dual thyristor module simplifies the conventional multilayer module construction by the DCB (Direct Copper Bonding) technique.
Approvals
RoHS Compliant, UL Recognised
Typical Applications
- Softstart AC motor controller
- Lighting and temperature control
- DC motor control
- Power converters
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | DC Motor Control, Lighting and Temperature Control, Power Converters, Softstart AC Motor Controller |
| Maximum Repetitive Reverse Voltage (VRRM) | 2x 1800V |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 1900V |
| Value for Fusing (I2t) | 25.3 kA2s |
| Forward Voltage Drop (VT) | 1.28V |
| Reverse Current, Drain Current (IR/D) | 200μA |
| Threshold Voltage (VT0) | 085V |
| Slope Resistance (rT) | 2.4mΩ |
| Thermal Resistance Junction to Case (RthJC) | 0.22 K/W |
| Thermal Resistance Junction to Heatsink (RthCH) | 0.2W |
| Total Power Dissipation (Ptot) | 455W |
| Maximum Forward Surge Current (ITSM), 125°C 50Hz, 60Hz | 1.92kA, 2.07kA |
| Turn-off Time (Tq) | 185μs |
| Operating Temperature (Top) | -40°C to +100°C |
| Package/Case | TO-240 AA |
| Mounting Style | Screw Mount |
| Type | Phase Leg |
| Product Type | Thyristor Module |
| Compliance | RoHS Compliant, UL Recognised |
IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.
IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.
IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.
The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.
IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.
IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.
IXYS: A Littelfuse Technology
IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.
