Images are for reference only, see product specifications for full details

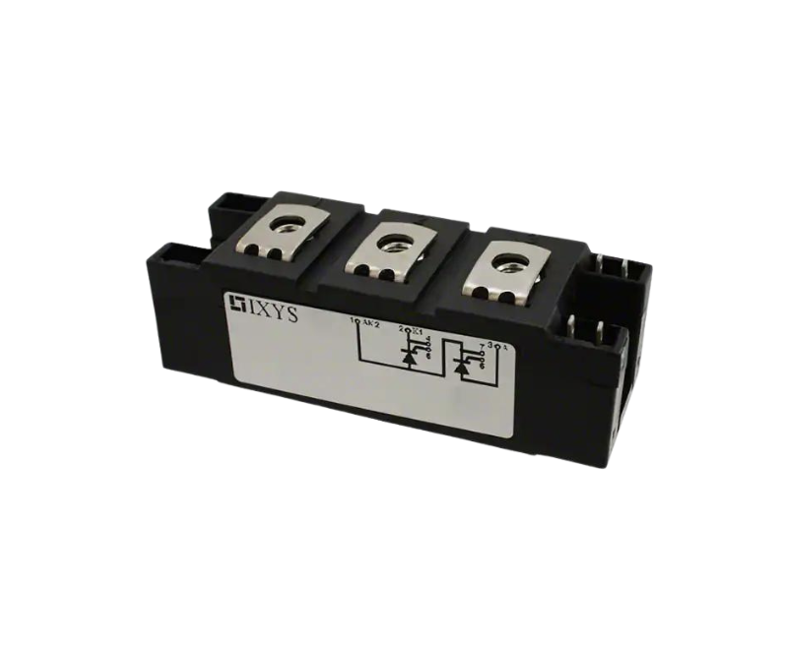

MCD161-22IO1 Thyristor/Diode Module 2x2200V, 165A
The MCD161-22IO1 phase leg thyristor/diode module features planar passivated chip and direct copper bonded AI2O3-ceramic.
- Thyristor for line frequency
- Planar passivated chip
- Long-term stability
- Direct copper bonded Al2O3-ceramic
Currently Out of Stock
Get notified when this item is back in stock or contact us for alternatives
This device provides long-term stability and is suited to line frequencies.
Approvals
RoHS Compliant, UL Recognised
Typical Applications
- Line rectifying 50/60 Hz
- Softstart AC motor control
- DC motor control
- Power converters
- AC power control
- Lighting and temperature control
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | AC Power Control, DC Motor Control, Lighting and Temperature Control, Line rectifying 50/60Hz, Power Converters, Softstart AC motor control |
| Maximum Repetitive Reverse Voltage (VRRM) | 2x 2200V |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 2300V |
| Maximum Average Forward Current (ITAV) | 165A |
| Maximum Repetitive Forward Blocking Voltage (VDRM) | 2200V |
| Maximum Gate Trigger Current (IGT) | 150mA |
| RMS Forward Current IT(RMS) | 300A |
| Reverse Current, Drain Current (IR/D) | 400μA |
| Value for Fusing (I2t) | 180 kA2s |
| Threshold Voltage (VT0) | 0.80V |
| Operating Temperature (Top) | -40°C to 100°C |
| Package/Case | Y4 |
| Mounting Style | Screw Mount |
| Product Type | Thyristor/Diode Module |
| Compliance | RoHS Compliant, UL Recognised |
IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.
IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.
IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.
The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.
IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.
IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.
IXYS: A Littelfuse Technology
IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.
Learn more about IXYS products by getting in touch with GD Rectifiers.
