MCD310-22io1 In stock

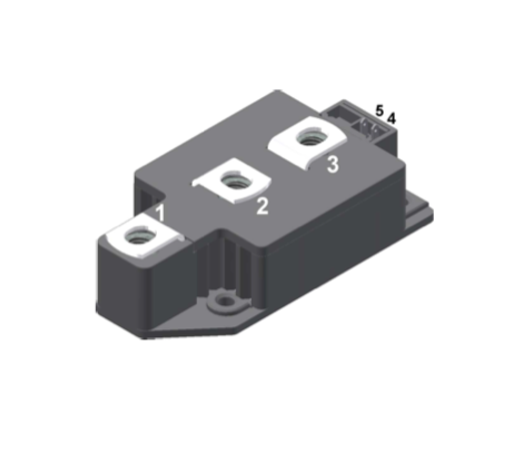

MCD310-22IO1 Thyristor/Diode Module 2200V, 320A

The MCD310-22IO1 pressure contact thyristor/diode module is designed to industry standard with auxiliary cathode connections rated 2200V, 320A with standard housing.

  • Planar passivated chip
  • Long-term stability
  • Direct copper bonded Al2O3-ceramic
  • Advanced power cycling
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The MCD310-22IO1 thyristor/diode module is suitable for applications such as industrial DC drives, marine/rail propulsion systems, wind power converters, electrochemical power supplies, soft starters, variable speed drives and traction converters.

Approvals
RoHS Compliant
UL Recognised

Typical Applications

  • Softstart AC motor control
  • DC motor control
  • Power converters
  • AC power control
  • Lighting and temperature control

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL RecognisedREACH Compliant

Manufacturer

Applications

, , , , ,

Maximum Repetitive Reverse Voltage (VRRM)

2200V

Maximum Non-Repetitive Reverse Voltage (VRSM)

2300V

Maximum Average Forward Current (ITAV)

320A

Maximum Repetitive Forward Blocking Voltage (VDRM)

2200V

Maximum Gate Trigger Current (IGT)

150mA

RMS Forward Current IT(RMS)

500A

Reverse Current, Drain Current (IR/D)

1mA

Value for Fusing (I2t)

320.0 kA2s

Threshold Voltage (VT0)

0.74V

Operating Temperature (Top)

-40°C to 125°C

Package/Case

Y2

Mounting Style

Screw Mount

Product Type

Thyristor/Diode Module

Compliance

RoHS Compliant, UL Recognised

IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.

IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.

IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.

The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.

IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.

IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.

IXYS: A Littelfuse Technology

IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.
