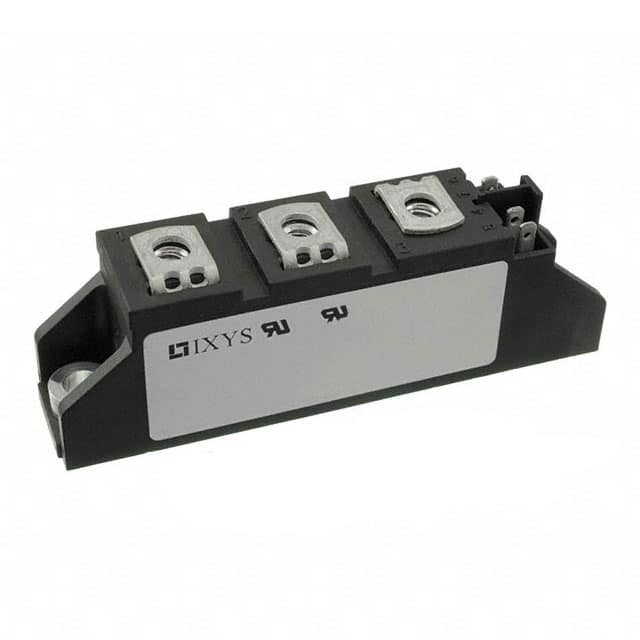

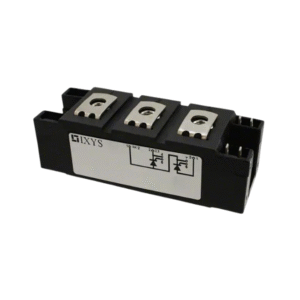

MCD94-22IO1B Thyristor/Diode Module 2x2200V, 104A
The MCD94-22IO1B pressure contact thyristor/diode module is designed to industry standard with auxiliary cathode connections rated 2200V, 104A with standard housing.
- Thyristor for line frequency
- Planar passivated chip
- Long-term stability
- Direct copper bonded Al2O3-ceramic
- Advanced power cycling
The MCD94-22IO1B thyristor/diode module is suitable for applications such as industrial DC drives, marine/rail propulsion systems, wind power converters, electrochemical power supplies, soft starters, variable speed drives and traction converters.
Approvals
RoHS Compliant, UL Recognised
Typical Applications
- Softstart AC motor control
- DC motor control
- Power converters
- AC power control
- Lighting and temperature control
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | AC Power Control, DC Motor Control, Lighting and Temperature Control, Line rectifying 50/60Hz, Power Converters, Softstart AC motor control |
| Maximum Repetitive Reverse Voltage (VRRM) | 2x 2200V |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 2300V |
| Maximum Average Forward Current (ITAV) | 104A |
| Maximum Repetitive Forward Blocking Voltage (VDRM) | 2200V |
| Maximum Gate Trigger Current (IGT) | 150mA |
| RMS Forward Current IT(RMS) | 163A |
| Reverse Current, Drain Current (IR/D) | 200μA |
| Value for Fusing (I2t) | 14.5 kA2S |
| Threshold Voltage (VT0) | 0.85V |
| Operating Temperature (Top) | -40°C to 100°C |
| Package/Case | TO-240AA |
| Mounting Style | Screw Mount |
| Product Type | Thyristor/Diode Module |
| Compliance | RoHS Compliant, UL Recognised |
