MDD310-08N1 HT In stock

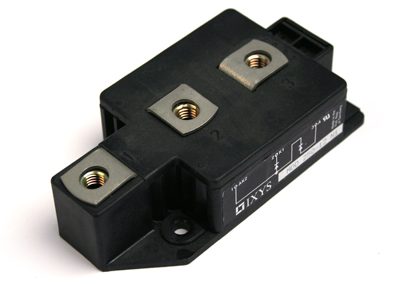

MDD310-08N1 Diode Module 800V, 2x305A

This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / enquiries@gdrectifiers.co.uk

The MDD310-08N1 diode module features improved temperature and power cycling capabilities and is designed for battery DC power supplies, field supply for DC motors and DC supply for PWM inverters.

  • Direct copper bonded AI2O3 ceramic base plate
  • Improved temperature and power cycling
  • Planar passivated chips
  • Isolation voltage 3600V
  • Simple mounting
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The MDD310-08N1 diode module is designed to industry standard outlines.

Approvals
RoHS Compliant
UL Recognised

Typical Applications

  • Supplies for DC power equipment
  • DC supply for PWM inverter
  • Field supply for DC motors
  • Battery DC power supplies

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL Recognised

Manufacturer

Applications

, , ,

Maximum Repetitive Reverse Voltage (VRRM)

800V

Maximum Average Forward Current IF(AV)M

2x 305A

Configuration

1 Pair Series Connection

Package/Case

Y2

RMS Forward Current (IFRMS)

2x 480A

Maximum Forward Voltage Drop (VF)

1.2V

Operating Temperature (Top)

-40°C to +125°C

Maximum Non-Repetitive Peak Reverse Voltage (VRSM)

900V

Mounting Style

Screw Mount

Product Type

Diode Module

Isolated Base

Yes

Compliance

RoHS Compliant, UL Recognised

IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.

IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.

IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.

The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.

IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.

IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.

IXYS: A Littelfuse Technology

IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

IXYS MDD310-08N1 Datasheet.pdf

Product Catalogues

Product Catalogues

IXYS IGBTs Product Catalogue

Product Catalogues

IXYS Product Catalogue 2022-2023

Product Catalogues

IXYS Selector Guide 2015
