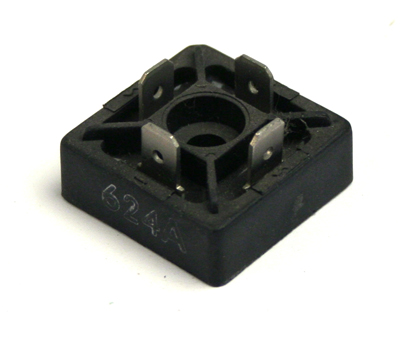

Images are for reference only, see product specifications for full details
VBO13-14NO2 Rectifier Bridge 1400V, 13A
This part is obsolete, see below for alternative:
VBO13-16NO2
The VBO13-14NO2 single phase rectifier bridge has a voltage of 1400V and an average DC output current of 13A. The single phase rectifier bridge offers improved thermal behaviour, has a low forward voltage drop and is UL registered E72873.
- Planar passivated chips
- Avalanche rated parts available
- Low forward voltage drop
- Package with DCB ceramic base plate
- Isolation voltage 3600V
Product Details
The VBO13-14NO2 is easy to mount with one screw, offers improved temperature and power cycling and provides space and weight savings.
Bridge rectifiers are popular devices and are known for converting an Alternating Current (AC) input into Direct Current a (DC) output. Diode bridges feature an arrangement of four diodes in a bridge circuit configuration, providing the same polarity of output for either polarity of input.
Approvals
UL Registered E72873, RoHS Compliant
Typical Applications
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | Battery DC Power Supplies, Field supply for DC motors, Input rectifiers for PWM inverter, Supplies for DC Power Equipment |
| Maximum Repetitive Reverse Voltage (VRRM) | 1400V |
| Average DC Output Current (IDAV) | 13A |
| Maximum Surge Forward Current (IFSM) | 220A |
| Maximum Non-Repetitive Reverse Blocking Voltage (VRSM) | 1500V |
| Reverse Current (IR) | 0.3mA |
| Forward Voltage Drop (VF) | 1.8V |
| Value for Fusing (I2t) | 240 A2s |
| Maximum Surge Reverse Power Dissipation (PRSM) | 2.5kW |
| Operating Temperature (TVJ) | -40°C to +150°C |
| Mounting Style | Scew Mount |
| Package/Case | FO-A |
| Product Type | Rectifier Bridge |
| Compliance | RoHS Compliant, UL Registered E72873 |
IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.
IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.
IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.
The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.
IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.
IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.
IXYS: A Littelfuse Technology
IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.
Learn more about IXYS products by getting in touch with GD Rectifiers.
Datasheet
IXYS VBO13-14NO2 Datasheet.pdf
