VUO22-14NO1 In stock

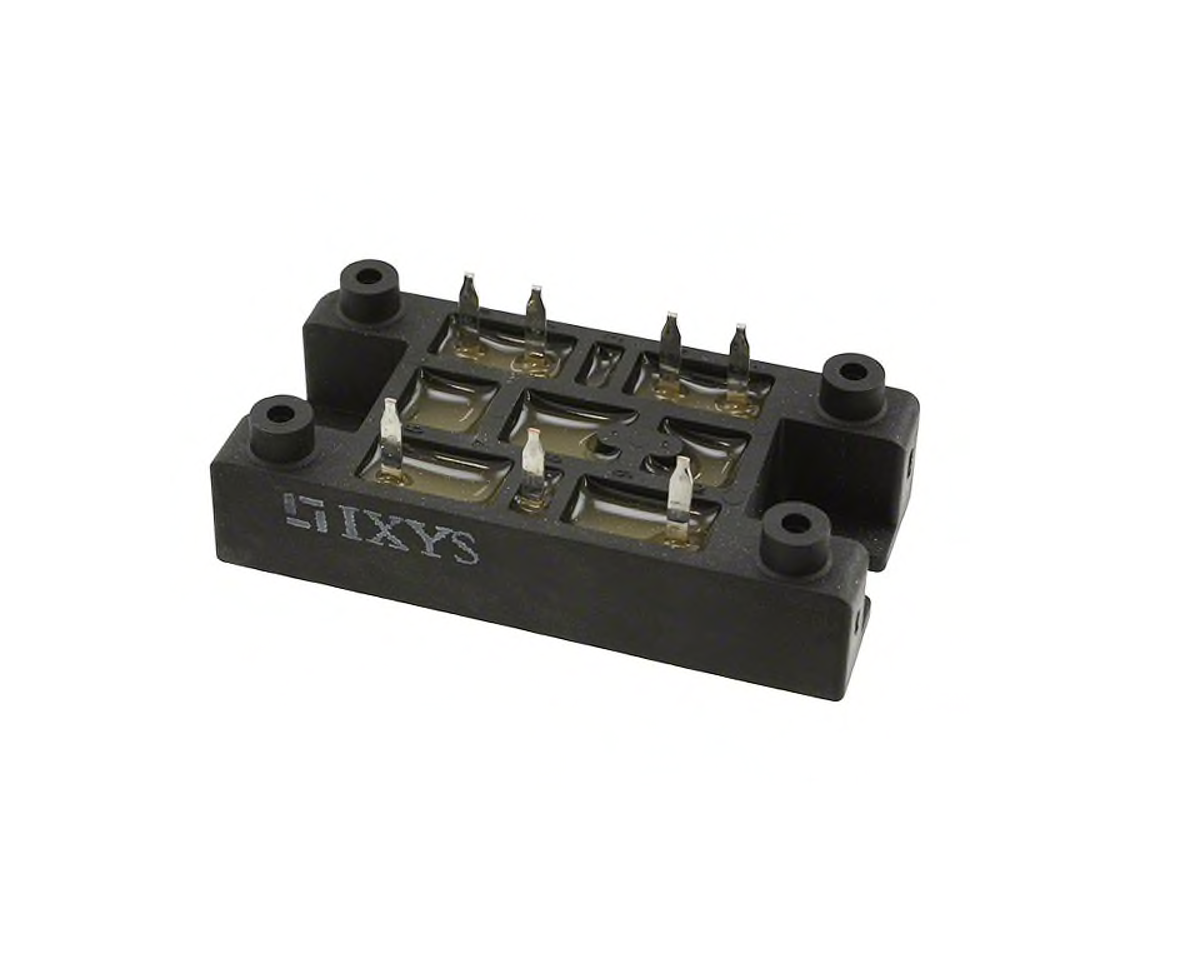

VUO22-14NO1 Rectifier Bridge Module 1400V, 440A

This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / enquiries@gdrectifiers.co.uk

The VUO22-14NO1 three phase rectifier bridge module offers advanced power cycling, very low forward voltage drop and low leakage current.

  • Package with DCB ceramic
  • Easy to mount with two screws
  • Planar passivated chips
  • Very low forward voltage drop
  • Improved temperature and power cycling
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The VUO22-14NO1 features very low voltage drop and improved temperature and power cycling, ideal for input rectifiers for PWM inverters and field supply for DC motors.

This part is now obsolete and stock is limited.

For further information on this device please contact our sales team on 01444 243 452 or email enquiries@gdrectifiers.co.uk.

Approvals
RoHS Compliant

Typical Applications

  • Diode for main rectification
  • For three phase bridge configurations
  • Input rectifiers for PWM inverter
  • Battery DC power supplies
  • Field supply for DC motors

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantREACH Compliant

Manufacturer

Applications

, , , ,

Maximum Repetitive Reverse Voltage (VRRM)

1400V

Average DC Output Current (IDAV)

22A

Package/Case

V1-Pack

Maximum Forward Surge Current (IFSM)

100A

Threshold Voltage (VT0)

0.8V

Operating Temperature (Top)

-40°C to +150°C

Maximum Non-Repetitive Peak Reverse Voltage (VRSM)

440V

Mounting Style

Screw Mount

Product Type

Rectifier Bridge Module

Compliance

RoHS Compliant

IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.

IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.

IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.

The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.

IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.

IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.

IXYS: A Littelfuse Technology

IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS products by getting in touch with GD Rectifiers.
