Images are for reference only, see product specifications for full details

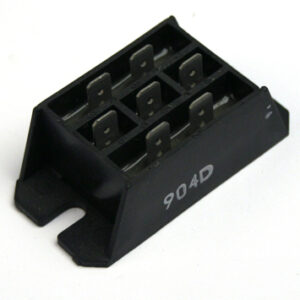

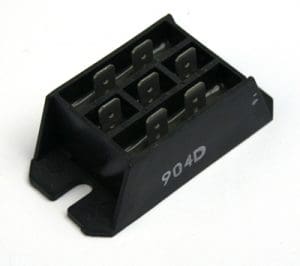

VUO50-12NO3 Rectifier Bridge Module 1200V, 60A
The VUO50-12NO3 three phase rectifier bridge module offers advanced power cycling, very low forward voltage drop and low leakage current.
- Package with DCB ceramic
- Easy to mount with two screws
- Planar passivated chips
- Very low forward voltage drop
- Improved temperature and power cycling
The VUO50-12NO3 three phase rectifier bridge module is designed for battery DC power supplies, input rectifiers for PWM inverters and field supply for DC motors.
Approvals
RoHS Compliant
UL Recognised
Typical Applications
- Diode for main rectification
- For three phase bridge configurations
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | Battery DC Power Supplies, Diode for Main Rectification, Field supply for DC motors, For three phase bridge configurations, Input rectifiers for PWM inverter |
| Maximum Repetitive Reverse Voltage (VRRM) | 1200V |
| Average DC Output Current (IDAV) | 60A |
| Package/Case | FO-F |
| Maximum Forward Surge Current (IFSM) | 500A |
| Reverse Current (IR) | 40μA |
| Maximum Forward Voltage Drop (VF) | 1.07V |
| Operating Temperature (Top) | -40°C to +125°C |
| Maximum Non-Repetitive Peak Reverse Voltage (VRSM) | 1300V |
| Mounting Style | Screw Mount |
| Product Type | Rectifier Bridge Module |
| Compliance | RoHS Compliant, UL Recognised |
IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.
IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.
IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.
The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.
IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.
IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.
IXYS: A Littelfuse Technology
IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.
Learn more about IXYS products by getting in touch with GD Rectifiers.
Datasheet
IXYS-VUO50-12NO3-Datasheet.pdf
