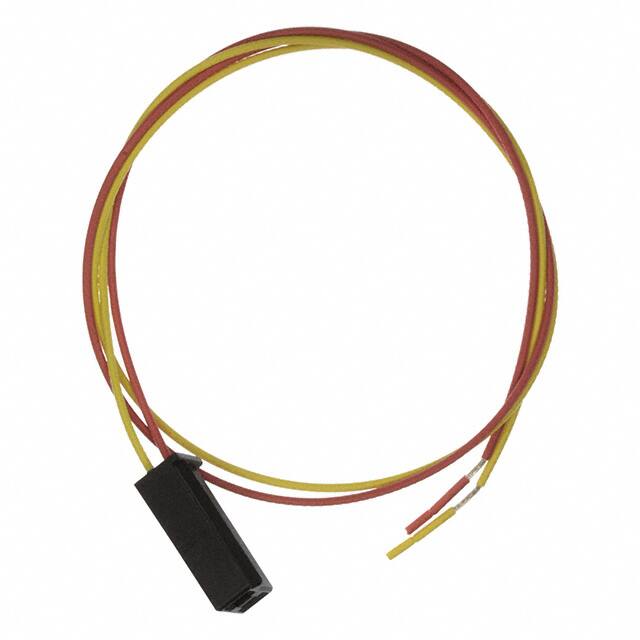

ZY200R350 Keyed Gate Cathode Twin Plugs
The ZY200R350 keyed gate cathode twin plug is a spacer to lift MCC95 terminals to the height of MCC312.
- MCC modules require 2 leads (both ZY200L for pin pair 4/5 and ZY200R for pin pair 6/7)
- Keyed Gate Cathode twin plugs
- Wire length = 350mm
- Gate = Yellow (or white) wire, Cathode = Red wire
For further information on semiconductor accessories, please contact us on: 01444 243 452 or email [email protected].
Optional accessories for modules
ZY200 Module Leads for module types MCC/MCMA 120 and down:
MCC19; MCC25; MCC26; MCC35; MCC40; MCC44; MCC50; MCC56; MCC65; MCC72; MCC85; MCC94; MCC95; MCC110; MCC120; and MCC140 version 1.
Also all MCMA modules of same type.
Notes
How to distinguish Right and Left leads:
Look at black plastic terminal connector end on: the triangular nodule should be facing downwards. If it is on the left it is a Left lead, if it is on the right it is a Right lead.
On a ZY180 lead the nodule is above the cathode (red) wire.
On a ZY200 lead the nodule is above the gate (yellow or white) wire.
| Manufacturer | |
|---|---|
| Product Status | Active |
| Product Type | Keyed Gate Cathode Twin Plugs |
| Wire Length | 350mm |
IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.
IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.
IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.
The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.
IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.
IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.
IXYS: A Littelfuse Technology
IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.
Learn more about IXYS products by getting in touch with GD Rectifiers.
