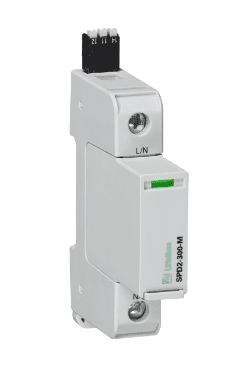

SPD2 1P+0 Surge Protection Modules
The SPD2-1P+0 surge protection device for the 1+0 configuration are available for 60 V to 600 V nominal voltage sub-distribution board applications.
- Compact footprint
- Capability to clamp and withstand high-energy transients
- UL Recognised and VDE-IEC compliant in single part number
- Interlocking tab mechanism
- No additional overcurrent protection devices required in UL applications
Currently Out of Stock
Get notified when this item is back in stock or contact us for alternatives
Surge protection devices (SPDs) provide equipment protection from transient overvoltage events lasting micro-seconds. By limiting the overvoltage to the equipment during these events, costly damage and downtime can be mitigated.
Approvals
UL Recognised, VDE Certification, CE Marked
Typical Applications
- Power distribution – load centers, transformers, generators
- Industrial controls – programmable logic controllers, motor controls, VFDs, proximity sensors, barcoding equipment, machine vison systems
- Electrical loads – motors, fans, heaters, blowers, ballasts
- Computers and communications – LANs, Wans, Intercoms, Fire,security, UPS or building management systems
- HVAC or medical equipment
Refer to manufacturer’s datasheet for full technical information.
Manufacturer | |
---|---|
Applications | Barcoding Equipment, Blowers, Communications, Fans, Fire, Heating, HVAC systems, Industrial controls, Intercoms, Medical, Motor Control, Power Distribution, Proximity Sensors, Security, Transformers, Uninterruptible Power Supplies (UPS), Variable Frequency Drives |
Compliance | CE Marked |
Certifications | UL Recognised |
Nominal Discharge Current (8/20 μs) (In) | 20kA |
Maximum Discharge Current (8/20 μs) (Imax) | Up to 50 kA |
Protective Elements | High Energy MOV |
Response Time (L-N / N-PE tA) | < 25 ns |
Back-Up Fuse (max) | 315 A / 250 A Gg |
Operating Temperature Range (Ta) | -40 °C to +80 °C |
