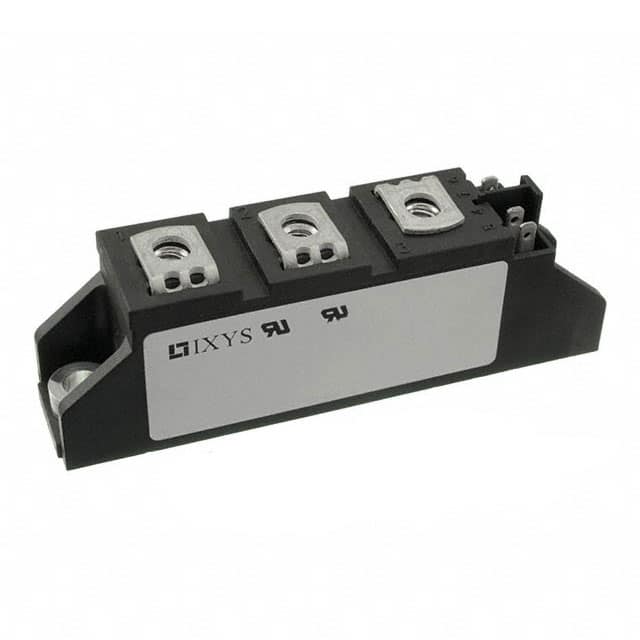

MEK75-12DA Fast Recovery Epitaxial Diode 1200V, 75A
The MEK75-12DA fast recovery epitaxial diode features soft recovery behaviour, short recovery time and low switching losses.
- Planar passivated chips
- Soft recovery behaviour
- Low voltage peaks for reduced protection circuits
- Short recovery time
- Low switching losses
- High reliability circuit operation
Currently Out of Stock
Get notified when this item is back in stock or contact us for alternatives
This device offers advanced power cycling, reduced weight and an isolation voltage of 3600V.
Approvals
RoHS Compliant, UL Recognised
Typical Applications
- Antiparallel diode for high frequency switching devices
- Freewheeling diode in converters and motor control circuits
- Inductive heating and melting
- Uninterruptible power supplies (UPS)
- Ultrasonic cleaners and welders
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | Antiparallel Diode for High Frequency Switching Devices, Free wheeling diodes, Inductive heating and melting, Ultrasonic Cleaners and Welders, Uninterruptible Power Supplies (UPS) |
| Repetitive Peak Reverse Voltage (VRRM) | 1200V |
| Non-Repetitive Peak Reverse Voltage (VRSM) | 1200V |
| Package/Case | TO-240AA |
| Nominal RMS Forward Current IF(RMS) | 107A |
| Operating Temperature (Top) | -40 to +125°C |
| Reverse Current (IR) | 2mA |
| Forward Voltage (VF) | 2.17V |
| Threshold Voltage (VT0) | 1.48V |
| Slope Resistance (rT) | 3.65mΩ |
| Reverse Recovery Time (trr) | 230ns |
| Product Type | Fast Recovery Diode |
| Compliance | RoHS Compliant, UL Recognised |
IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.
IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.
IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.
The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.
IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.
IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.
IXYS: A Littelfuse Technology
IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.
Learn more about IXYS products by getting in touch with GD Rectifiers.
