Images are for reference only, see product specifications for full details

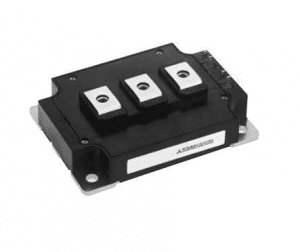

CM300DY-24NF IGBT Module 1200V, 300A
The CM300DY-24NF IGBT module is designed for general purpose inverters and servo controls.
- IC 300A
- VCEs 1200V
- Insulated type
- 2-elements in a pack
- High reliability
Currently Out of Stock
Get notified when this item is back in stock or contact us for alternatives
This module is used in many types of industrial equipment and is used for high power switching use.
Approvals
RoHS Compliant
Typical Applications
- General purpose inverters
- Servo controls
- Industrial applications
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | |
| Collector Emitter Voltage (VCES) | 1200V |
| Collector Current (IC) at 25°C | 300A |
| Repetitive Peak Collector Current (ICM) | 600A |
| Gate Emitter Voltage, Collector Emitter Short-circuited (VGES) | ±20V |
| Collector Emitter Saturation Voltage VCE(sat) | 2.5V |
| Turn-on time Td(on) | 500ns |
| Turn-off time Td(off) | 600ns |
| Configuration | Dual |
| Junction Temperature (TJ) | -40°C to +150°C |
| Mounting Style | Screw Mount |
| Product Type | IGBT Module |
| Compliance | RoHS Compliant |
Datasheet
cm300dy-24nf_e.pdf
