SEMiX202GB12E4S In stock

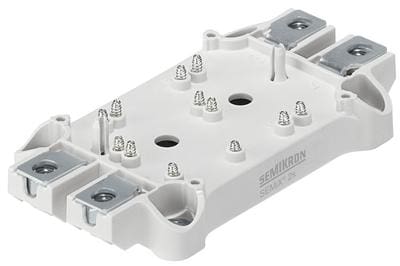

SEMiX202GB12E4S Trench IGBT Module 1200V, 312A

The SEMiX202GB12E4S Trench IGBT module features homogeneous Si and is UL recognised.

  • Homogeneous Si
  • Trench = Trenchgatetechnology
  • VCE(sat) with positive temperature coefficient
  • UL recognised file no.E63532
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The SEMiX family includes uniform IGBT and rectifier housings. Most of these devices have the same height (17mm) and the power terminals can be connected by one principle DC-link design. This saves development time and makes a simple, low inductance DC-link profile possible. Spring or press-fit contacts allow for a gate driver mounted directly on top of the module, eliminating the risk of noise on wires or loose connectors.

Highly compact, state-of-the-art inverter designs are achievable thanks to the flat package and separate AC and DC terminals.
The solder-free contacts provide quick and easy assembly. Optimise inverter production with a uniform assembly direction (everything top down), this simplifies logistics and reduces manufacturing costs.

Approvals
RoHS Compliant
UL Recognised

Typical Applications

  • AC inverter drives
  • UPS
  • Electronic welding

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL Recognised

Manufacturer

Applications

, ,

Collector Emitter Voltage (VCES)

1200V

Collector Current (IC) at 25°C

312A

Collector Current (IC) at 80°C

240A

Nominal Collector Current (ICnom)

200A

Repetitive Peak Collector Current (ICRM)

600A

Gate Emitter Voltage, Collector Emitter Short-circuited (VGES)

-20 to 20V

Collector Emitter Saturation Voltage VCE(sat)

2.05V

Turn-on time Td(on)

253ns

Turn-off time Td(off)

533ns

Configuration

Dual

Package/Case

SEMiX 2s

Operating Junction Temperature (TJ)

-40°C to +175°C

Mounting Style

Screw Mount

Product Type

Trench IGBT Module

Compliance

RoHS Compliant, UL Recognised

Semikron Danfoss is a leading manufacturer of semiconductor components, including power modules and systems. Based in Germany, Semikron Danfoss specialises in discrete semiconductors, transistors, diodes, thyristors, IGBTs, MOSFETs and thyristor diode modules. Semikron’s state-of-the-art semiconductor range enables customers to develop smaller, more energy efficient power electronic systems, reducing global energy demand.

Typical applications include power supplies, renewable energies (wind and solar power) and electric vehicles (private cars, vans, buses, lorries, forklift trucks, and more).

Semikron

Semikron Danfoss is a leading global semiconductor manufacturer and focuses on new markets such as renewable energy and hybrid vehicles as well as industrial applications such as electric drives, welding machines, lifts, power supplies, pumps, conveyor belts, trains and trams.

Learn more about Semikron Danfoss products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

Semikron SEMiX202GB12E4S Datasheet.pdf

Product Catalogues

Product Catalogues

Semikron Product Catalogue 2021/2022

Product Catalogues

Semikron Product Catalogue 2019

Product Catalogues

Semikron Semiconductors Application Manual

Product Flyers

Product Flyers

Semikron Discrete Semiconductors Flyer

Product Flyers

Semikron Power Electronics for Vehicles Flyer

Product Flyers

Semikron Wind Operation & Maintenance Flyer
