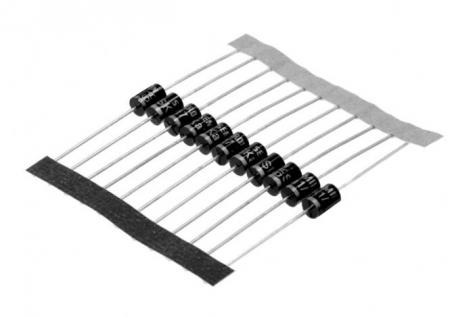

Images are for reference only, see product specifications for full details
SKa 1/17 Avalanche Diode 1700V, 1A
The SKa 1/17 avalanche diode is suitable for DC power supplies and series connections for high voltage applications.
- Avalanche type reverse characteristics
- Transient voltage proof within specified limits
- Taped for automatic insertion
- Available with formed leads on request
- Plastic material used carries Underwriter Laboratories flammability classification 94V-0
Product Details
General purpose avalanche rectifier diodes featuring controlled avalanche reverse voltage characteristics.
Approvals
RoHS Compliant
Typical Applications
- DC supply for magnets or solenoids (brakes, valves etc.)
- Series connections for high voltage applications like dust precipitators
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | DC Supply for Magnets or Solenoids, Series connections for high voltage applications |
| Maximum Repetitive Reverse Voltage (VRRM) | 1700V |
| Housing | Leaded Diodes |
| Package/Case | E33 |
| RMS Forward Current (IFRMS) | 3A |
| Maximum Peak Surge Current (IFSM) | 60A |
| Maximum Surge Reverse Power Dissipation (PRSM) | 1 kW |
| Operating Junction Temperature (TJ) | -40 to +180°C |
| Value for Fusing (I2t) | 18 A2s |
| Maximum Forward Voltage Drop (VF) | 1.5V |
| Product Type | Avalanche Diode |
| Maximum Reverse Current, Drain Current (IRD) | 400μA |
| Thermal Resistance (Rthj-r) | 40 K/W |
| Thermal Resistance Junction to Ambient (Rthj-a) | 85 K/W |
| Breakdown Voltage V(BR) Min | 1700V |
| Compliance | RoHS Compliant |
Semikron Danfoss is a leading manufacturer of semiconductor components, including power modules and systems. Based in Germany, Semikron Danfoss specialises in discrete semiconductors, transistors, diodes, thyristors, IGBTs, MOSFETs and thyristor diode modules. Semikron’s state-of-the-art semiconductor range enables customers to develop smaller, more energy efficient power electronic systems, reducing global energy demand.
Typical applications include power supplies, renewable energies (wind and solar power) and electric vehicles (private cars, vans, buses, lorries, forklift trucks, and more).
Semikron
Semikron Danfoss is a leading global semiconductor manufacturer and focuses on new markets such as renewable energy and hybrid vehicles as well as industrial applications such as electric drives, welding machines, lifts, power supplies, pumps, conveyor belts, trains and trams.
Learn more about Semikron Danfoss products by getting in touch with GD Rectifiers.
Datasheet
SEMIKRON SKa 1-17 Datasheet.pdf
