Images are for reference only, see product specifications for full details

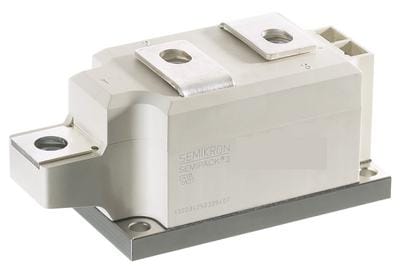

SKKT 330/18E Thyristor/Diode Module 1800V, 305A
The SKKT 330/18E thyristor/diode module provides heat transfer through an aluminium nitride ceramic isolated metal baseplate and is ideal for DC motor control and AC motor starter applications.
- Heat transfer through aluminium nitride ceramic isolated metal baseplate
- Precious metal pressure contacts for high reliability
- UL recognised, file no. E 63 532
The thyristor/diode modules are offered in a variety of dual and single topologies. With blocking voltages of up to 2200V, SEMIKRON offers a solution for most phase control or rectifier applications. Thanks to the comprehensive product range, the optimum solution can be found for every application.
Approvals
RoHS Compliant
UL Recognised
Typical Applications
- DC motor control (e.g.for machine tools)
- AC motor soft starters
- Temperature control (e.g.for ovens, chemical processes)
- Professional light dimming (studios, theaters)
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | AC Motor Soft Starters, Chemical Processes, DC Motor Control, Professional Light Dimming, Temperature Control |
| Maximum Repetitive Reverse Voltage (VRRM) | 1800V |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 1900V |
| Maximum Average Forward Current (ITAV) | 305A |
| RMS Forward Current IT(RMS) | 510A |
| Package/Case | A76B |
| Turn-off Time (Tq) | 50 – 150μs |
| Minimum Gate Trigger Current (IGT) | 200mA |
| Surge On-state Current (ITSM) | 9500A |
| Direct Output Current (ID) | 520A |
| Virtual Junction Temperature (TVJ) | -40°C to +130°C |
| Product Type | Thyristor/Diode Module |
| Compliance | RoHS Compliant, UL Recognised |
Semikron Danfoss is a leading manufacturer of semiconductor components, including power modules and systems. Based in Germany, Semikron Danfoss specialises in discrete semiconductors, transistors, diodes, thyristors, IGBTs, MOSFETs and thyristor diode modules. Semikron’s state-of-the-art semiconductor range enables customers to develop smaller, more energy efficient power electronic systems, reducing global energy demand.
Typical applications include power supplies, renewable energies (wind and solar power) and electric vehicles (private cars, vans, buses, lorries, forklift trucks, and more).
Semikron
Semikron Danfoss is a leading global semiconductor manufacturer and focuses on new markets such as renewable energy and hybrid vehicles as well as industrial applications such as electric drives, welding machines, lifts, power supplies, pumps, conveyor belts, trains and trams.
Learn more about Semikron Danfoss products by getting in touch with GD Rectifiers.
Datasheet
Semikron SKKT 330-18E Datasheet.pdf
Product Catalogues
Semikron Product Catalogue 2021/2022
Semikron Product Catalogue 2019
Semikron Semiconductors Application Manual
Product Flyers
Semikron Discrete Semiconductors Flyer
Semikron Power Electronics for Vehicles Flyer
Semikron Wind Operation & Maintenance Flyer
