Images are for reference only, see product specifications for full details

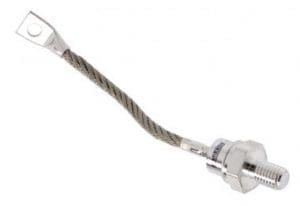

SKN 130/16 Rectifier Diode 1600V, 130A
This part is obsolete, see below for alternative:
GDT150MN16
Rectifier diodes are components with two terminals and are used to rectify alternating currents. They have an asymmetrical current-voltage characteristic
The SKN 130/16 rectifier stud diode is now obsolete and is not recommended for new designs.
Approvals
RoHS Compliant
Typical Applications
- All-purpose mean power rectifier diodes
- Cooling via heatsinks
- Non controllable and half controllable rectifier
- Free wheeling diodes
- Snubber networks
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | All-Purpose Mean Power Rectifier Diodes, Cooling via heatsinks, Free wheeling diodes, Non controllable and half controllable rectifier, Snubber Networks |
| Maximum Repetitive Reverse Voltage (VRRM) | 1600V |
| Package/Case | E14 |
| Maximum Peak Surge Current (IFSM) | 2500A |
| Operating Junction Temperature (TJ) | -40°C to +180°C |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 1600V |
| Product Type | Rectifier Diode |
| Drain Current (ID) at 225°C | 225A |
| Value for Fusing (I2t) | 000 A2s, 31 |
| Maximum Forward Voltage Drop (VF) | 1.5V |
Semikron Danfoss is a leading manufacturer of semiconductor components, including power modules and systems. Based in Germany, Semikron Danfoss specialises in discrete semiconductors, transistors, diodes, thyristors, IGBTs, MOSFETs and thyristor diode modules. Semikron’s state-of-the-art semiconductor range enables customers to develop smaller, more energy efficient power electronic systems, reducing global energy demand.
Typical applications include power supplies, renewable energies (wind and solar power) and electric vehicles (private cars, vans, buses, lorries, forklift trucks, and more).
Semikron
Semikron Danfoss is a leading global semiconductor manufacturer and focuses on new markets such as renewable energy and hybrid vehicles as well as industrial applications such as electric drives, welding machines, lifts, power supplies, pumps, conveyor belts, trains and trams.
Learn more about Semikron Danfoss products by getting in touch with GD Rectifiers.
Datasheet
SKN-13016-Datasheet.pdf
Product Catalogues
Semikron Product Catalogue 2021/2022
Semikron Product Catalogue 2019
Semikron Semiconductors Application Manual
Product Flyers
Semikron Discrete Semiconductors Flyer
Semikron Power Electronics for Vehicles Flyer
Semikron Wind Operation & Maintenance Flyer
