Images are for reference only, see product specifications for full details

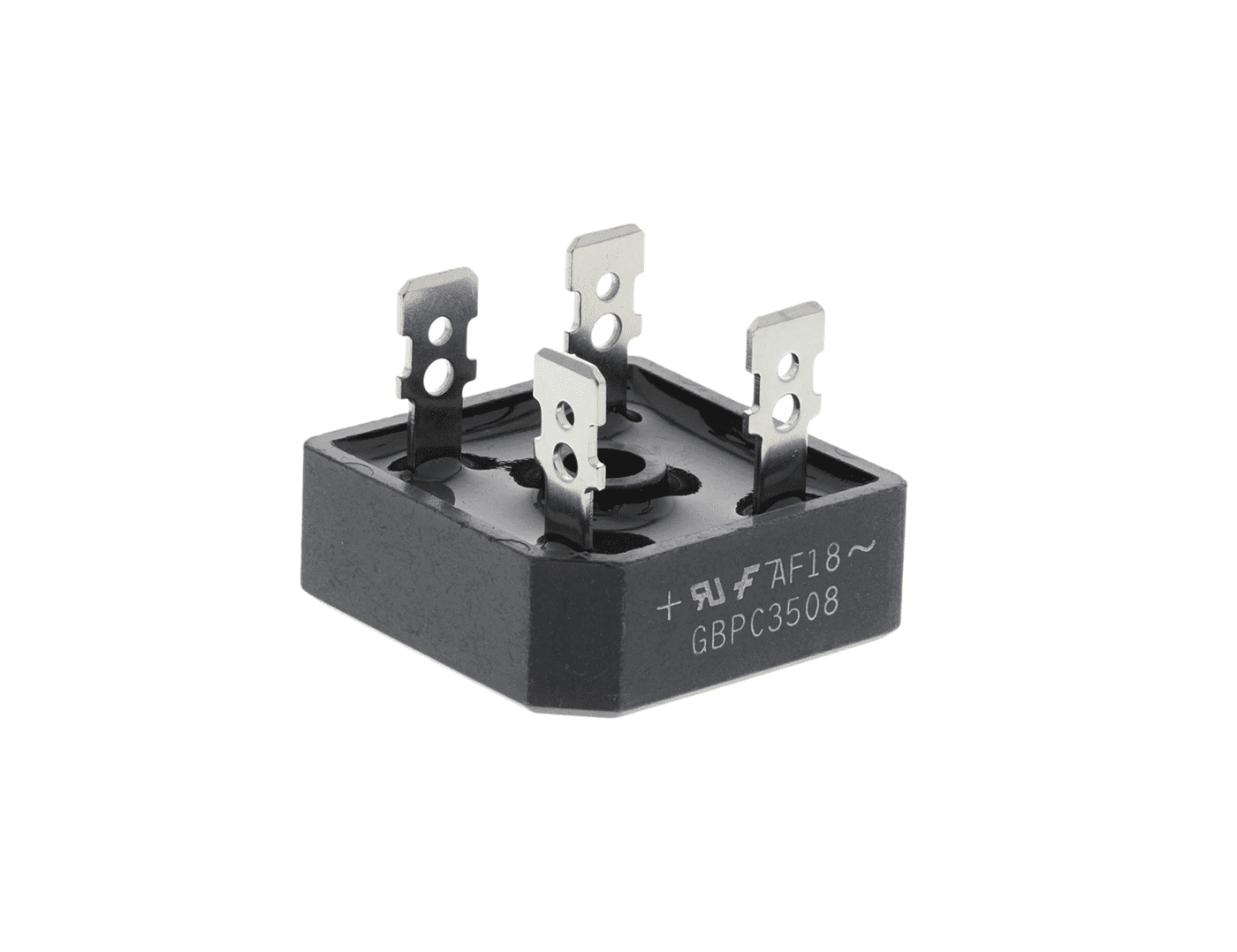

GBPC35-08 Bridge Rectifier 35A, 1000V
The GBPC35-08 bridge rectifier features high surge current capability, low thermal resistance and is UL recognised.
- Universal 3-way terminals: snap-on, wire wrap-around, or PCB mounting
- Typical IR less than 0.3 μA
- High surge current capability
- Low thermal resistance
- UL recognised, file number E54214
A bridge rectifier is a full-wave rectifier that uses four or more diodes in a bridge circuit configuration to convert alternating (AC) current to a direct (DC) current. Bridge rectifiers provide full-wave rectification from a two-wire AC input and offer weight and cost savings compared to a rectifier with a three-wire input.
Approvals
RoHS Compliant
UL Recognised
Typical Applications
General purpose use in AC/DC bridge full wave rectification for
- Power supply
- Home appliances
- Office equipment
- Industrial automation applications
Refer to manufacturer’s datasheet for full technical information.
Images are for reference only, see product specifications for full details.
| Manufacturer | |
|---|---|
| Applications | General purpose use in AC/DC bridge full wave rectification for power supply, Home appliances, Industrial Automation, Office Equipment |
| Maximum Repetitive Reverse Voltage (VRRM) | 800V |
| Average Forward Current (IFAV) | 35A |
| Configuration | Quad |
| Package/Case | GBPC |
| Maximum Junction Temperature (TJ) | 150°C |
| Maximum Peak Surge Current (IFSM) | 400A |
| Forward Voltage Drop (VF) max | 1.1V |
| Operating Junction Temperature (TJ) | -55°C to +150°C |
| Product Type | Single Phase Bridge Rectifier |
| Value for Fusing (I2t) | 660 A2s |
| Maximum Reverse Current (IR) | 5 μA |
Datasheet
gbpc12.pdf
