Images are for reference only, see product specifications for full details

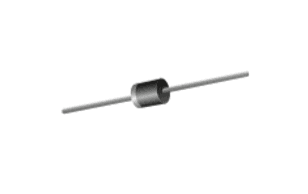

P600M Rectifier Diode 100V, 6A
The P600M rectifier diode is used in general purpose rectification of power supplies, inverters, converters and freewheeling diode applications.
- Low forward voltage drop
- Low leakage current
- High forward current capability
- High forward surge capability
- Solder dip 275 °C max. 10 s, per JESD 22-B106
Currently Out of Stock
Get notified when this item is back in stock or contact us for alternatives
The P600M molding compound meets UL94V-0 flammability rating.
Approvals
RoHS Compliant
Typical Applications
- General purpose rectification of power supplies
- Inverters
- Converters
- Freewheeling diodes
Refer to manufacturer’s datasheet for full technical information.
Manufacturer | |
---|---|
Applications | Converters, Free wheeling diodes, General purpose rectification of power supplies, Inverters |
Maximum Repetitive Reverse Voltage (VRRM) | 600V |
Package/Case | P600 |
Maximum Peak Surge Current (IFSM) | 400A |
Operating Junction Temperature (TJ) | -50°C to +150°C |
Reverse Current (IR) | 5.0μA |
Maximum Forward Voltage Drop (VF) | 1.0V |
Product Type | Rectifier Diode |
Datasheet
p600a.pdf
